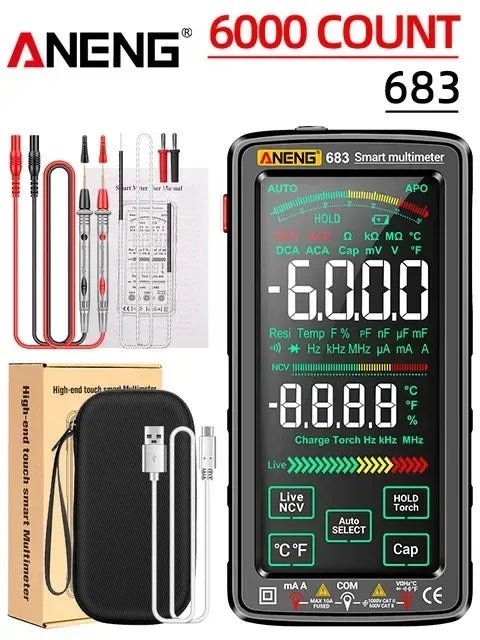

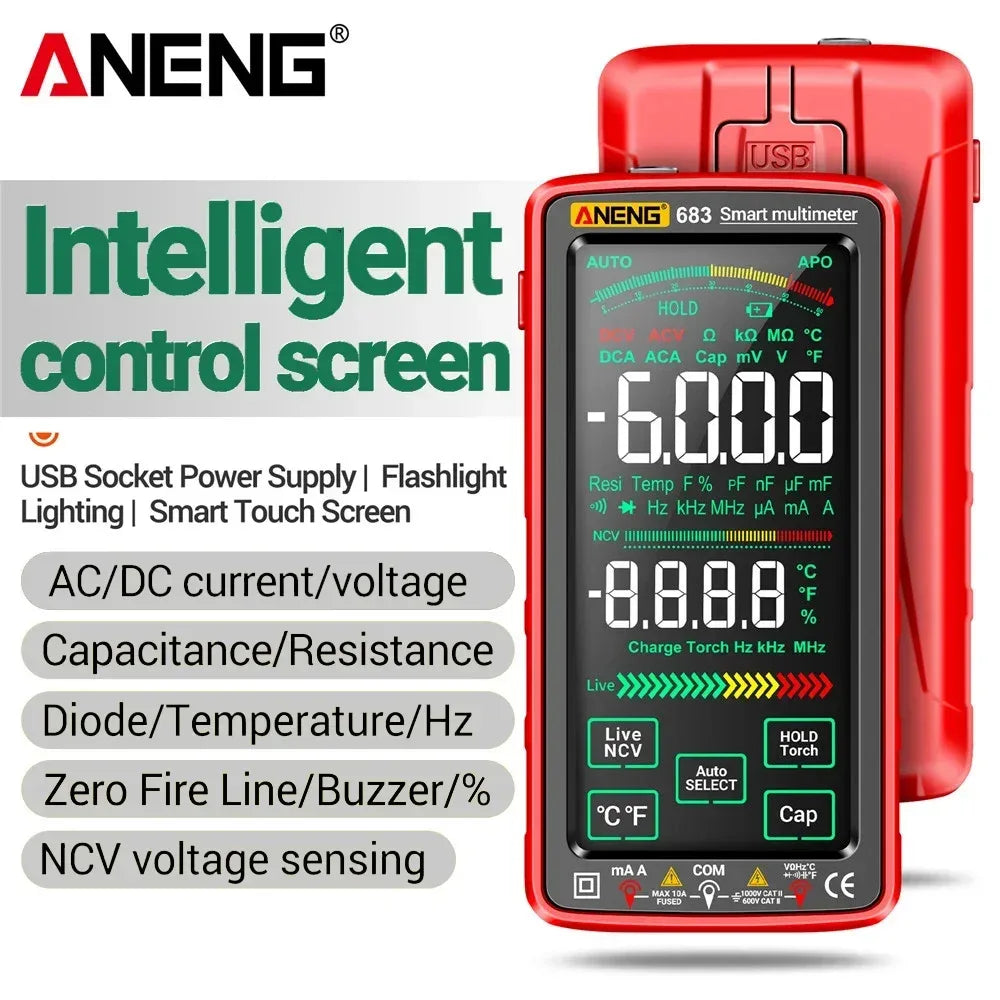

AC DC Voltage Tester ANENG 683 Smart Multimeter
AC DC Voltage Tester Measure electrical parameters accurately with the ANENG 683 Smart Multimeter, a high-end, rechargeable multitester designed for precision testing of AC/DC voltage, current, and resistance.
Featuring a touch interface and 6000 counts display, this multimeter offers fast, reliable, and accurate readings. Its compact and ergonomic design makes it ideal for professionals, electricians, engineers, and DIY enthusiasts across the UK.
Built for safety and convenience, it supports rechargeable operation and includes multiple testing modes for comprehensive electrical diagnostics.
🔧 Key Features:
-

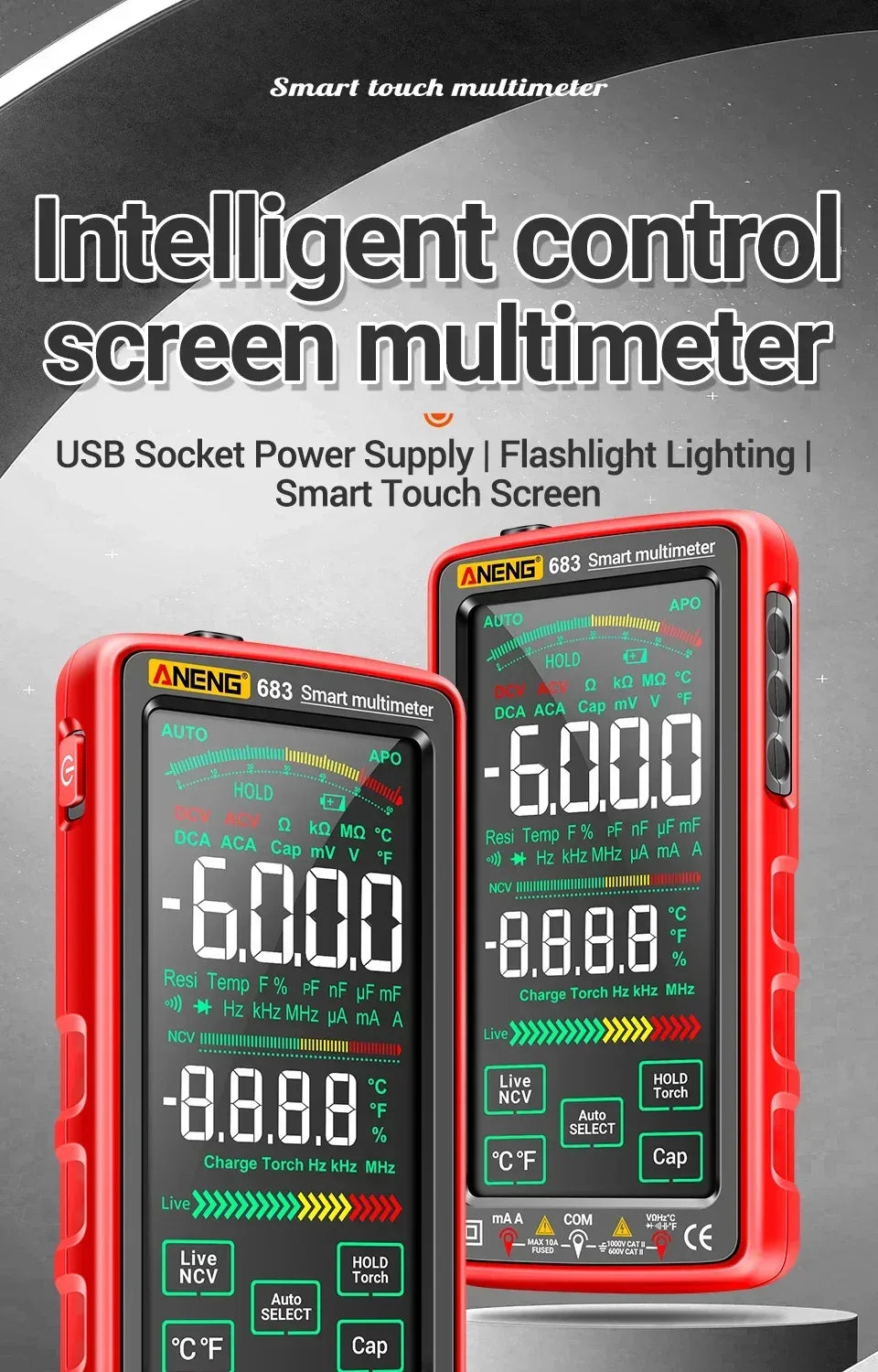

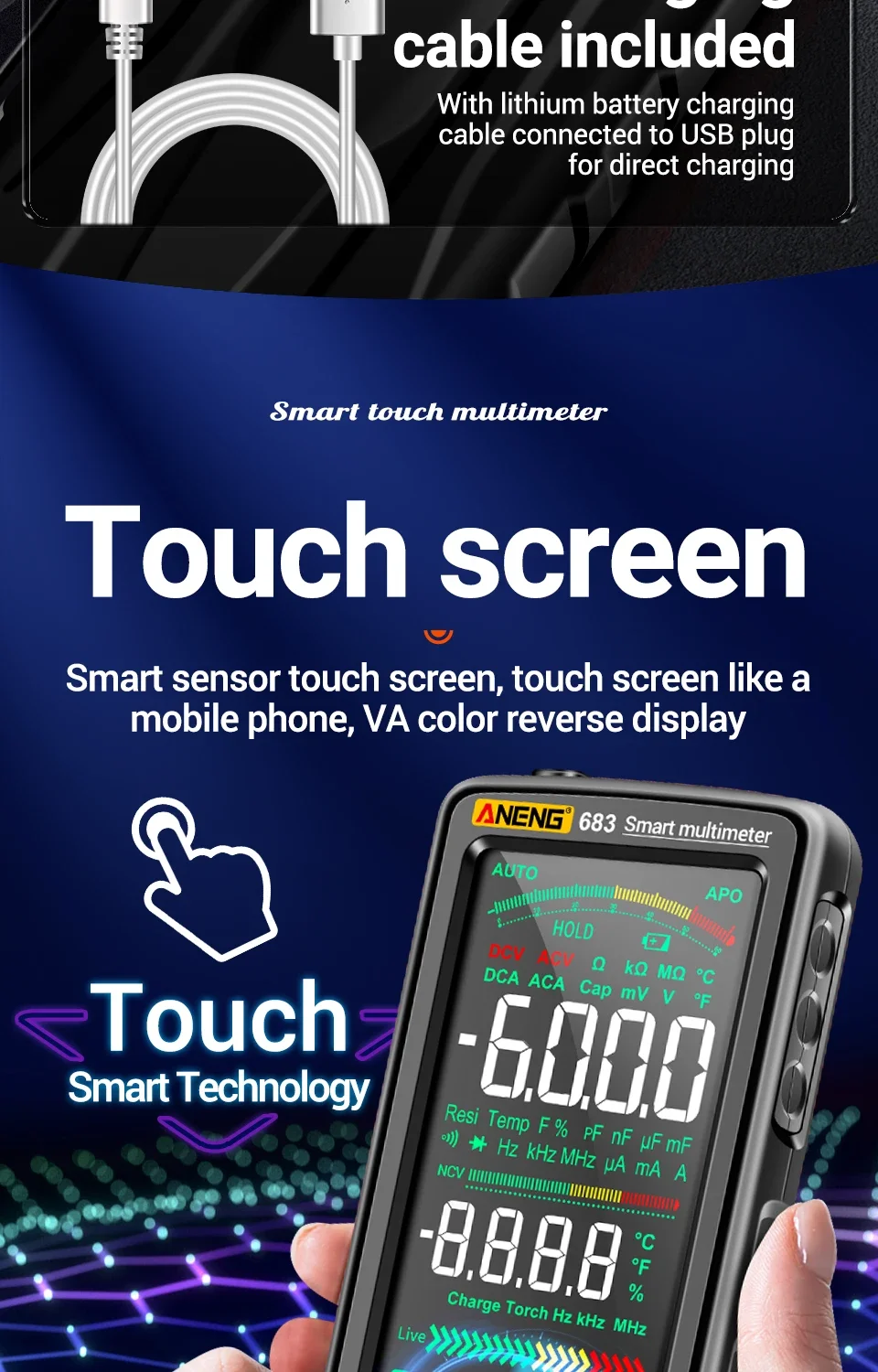

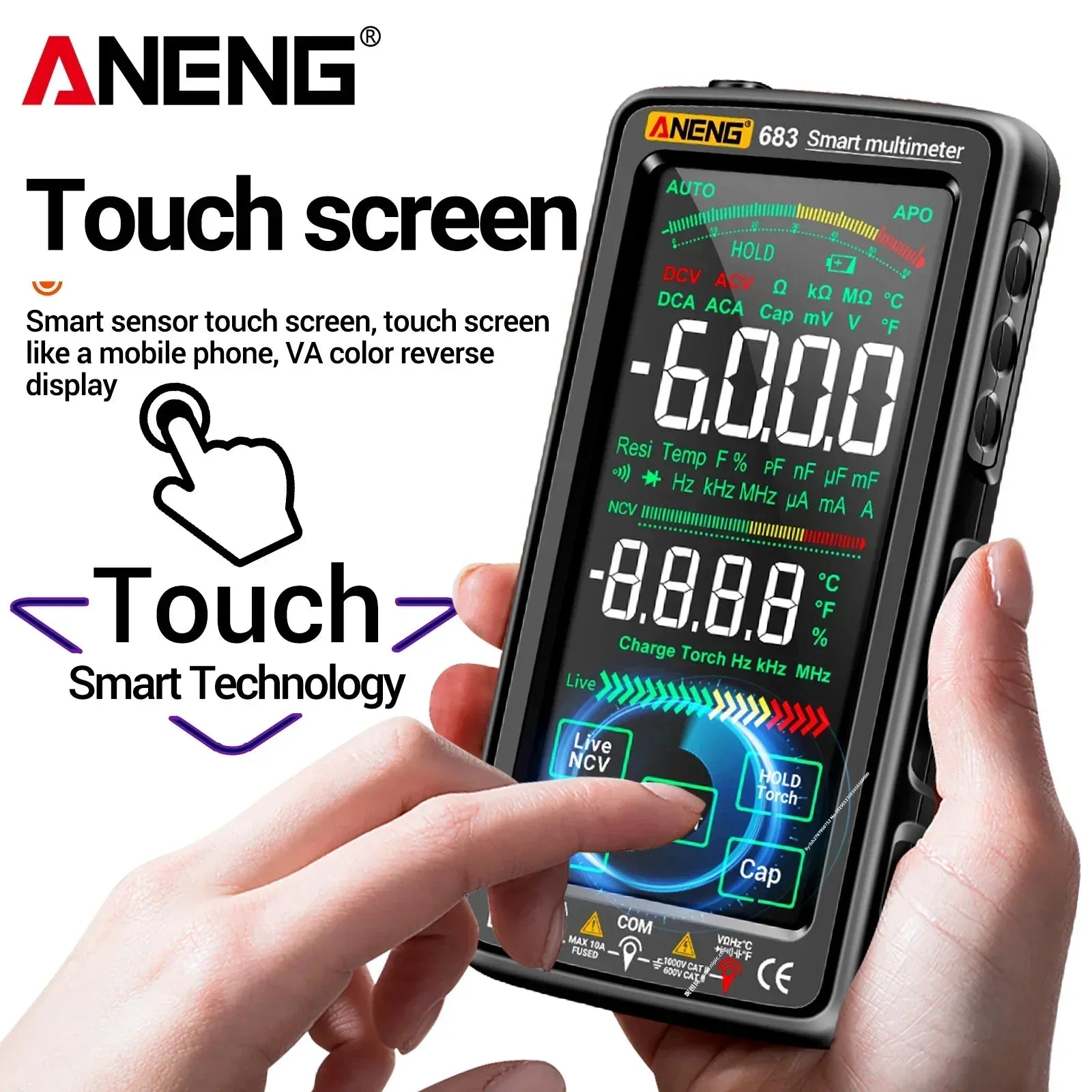

Smart touch multimeter with 6000 counts display
-
Measures AC/DC voltage, current, resistance, continuity, and more
-

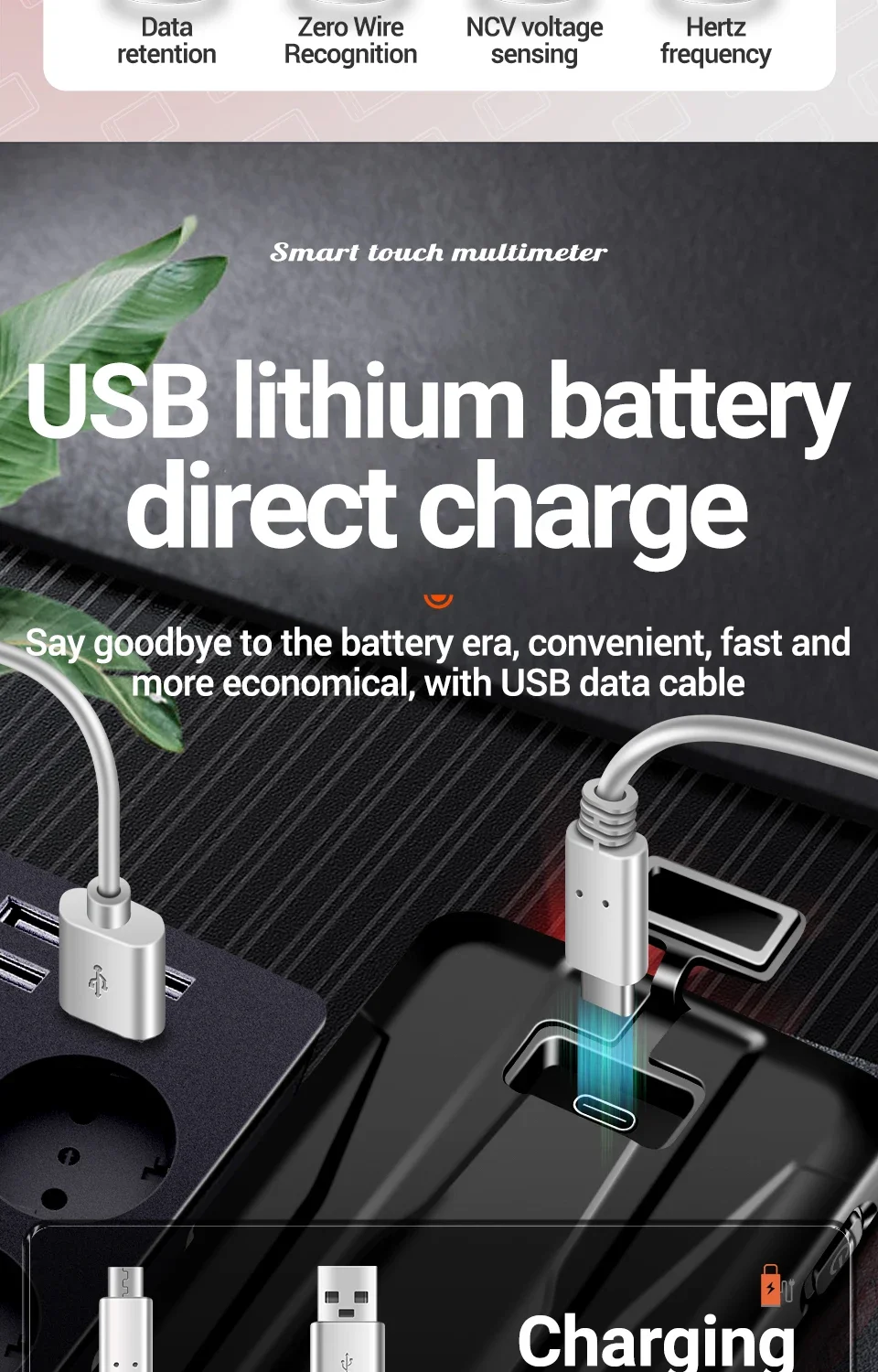

Rechargeable battery for eco-friendly operation
-
Compact and ergonomic for professional and DIY use
-
Suitable for electronics, electrical work, and household repairs
Perfect for electrical testing, troubleshooting, and DIY projects.
SPECIFICATIONS
AC Current: 6000mA/10A
AC Voltage: 6V/60V/600V/750V
Battery Included: Yes
Brand Name: ANENG
Certification: None
Choice: yes
DC Current: 6000mA/10A
DC Voltage: 6V/60V/600V/1000V
DIY Supplies: Electrical

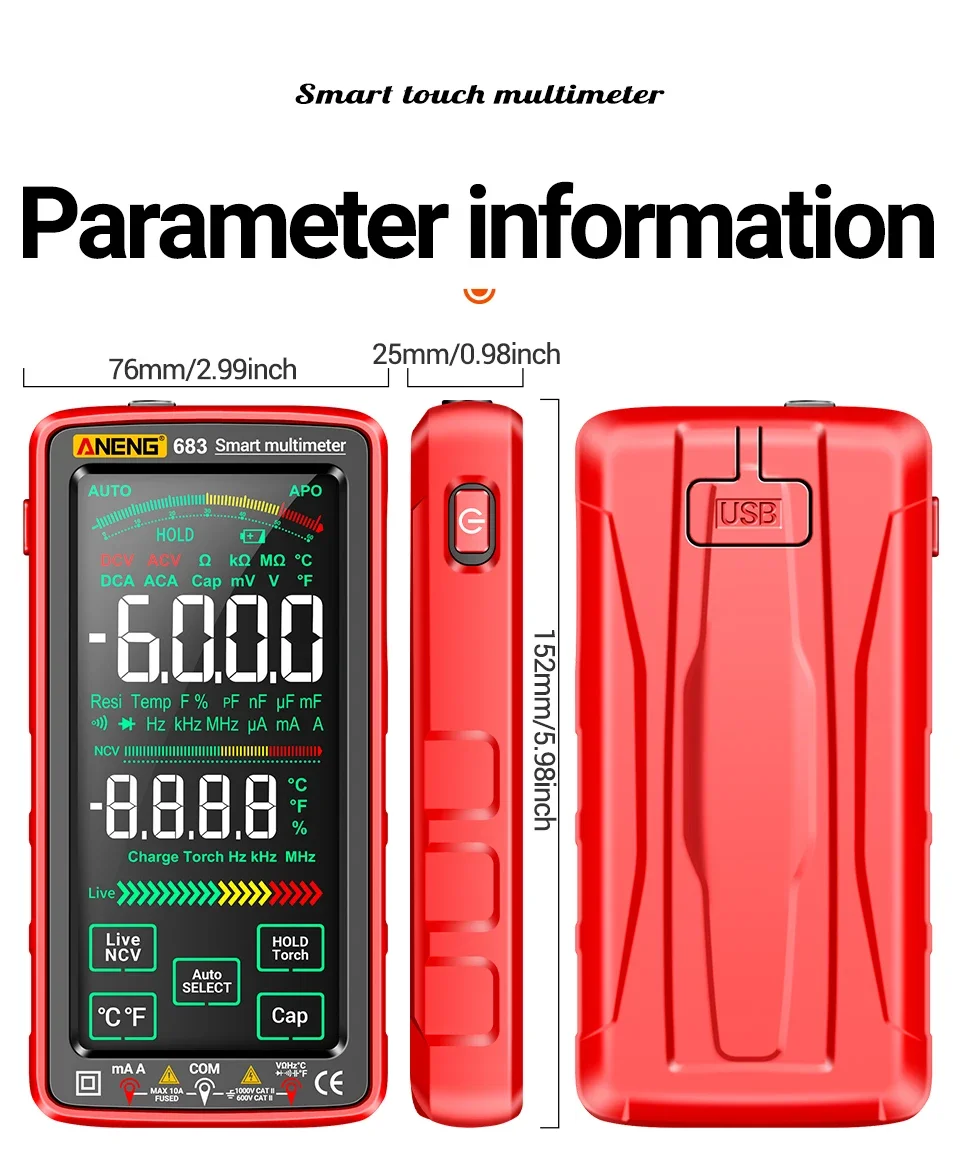

Dimensions: 150*75*24
Display Type: Digital Display
High-concerned chemical: None
Measuring Capacitance Range: 60nF/60nF/6uF/60uF/600uF/6mF/60mF/100mF
Measuring Inductance Range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz
Measuring Resistance Range: 600/6k/60k/600k/6M/60M
Model Number: ANENG 683 Digital Multimeter
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: United Kingdom
ANENG 683 Smart Multimeter Tester High-end Touch Rechargeable 6000 Counts Multimetro Test Multitester AC/DC Voltage Current Tool
Introduce:

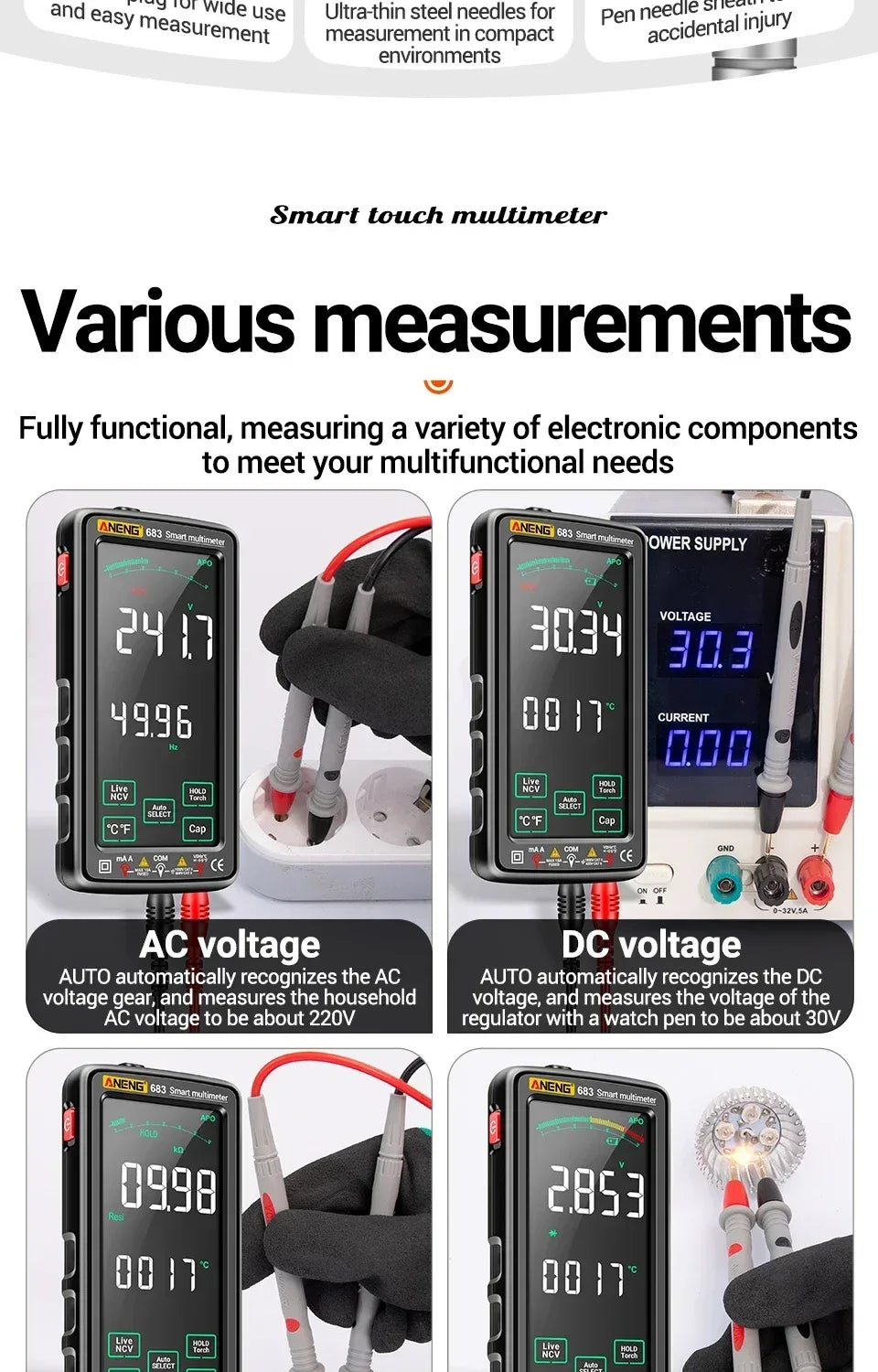

This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.

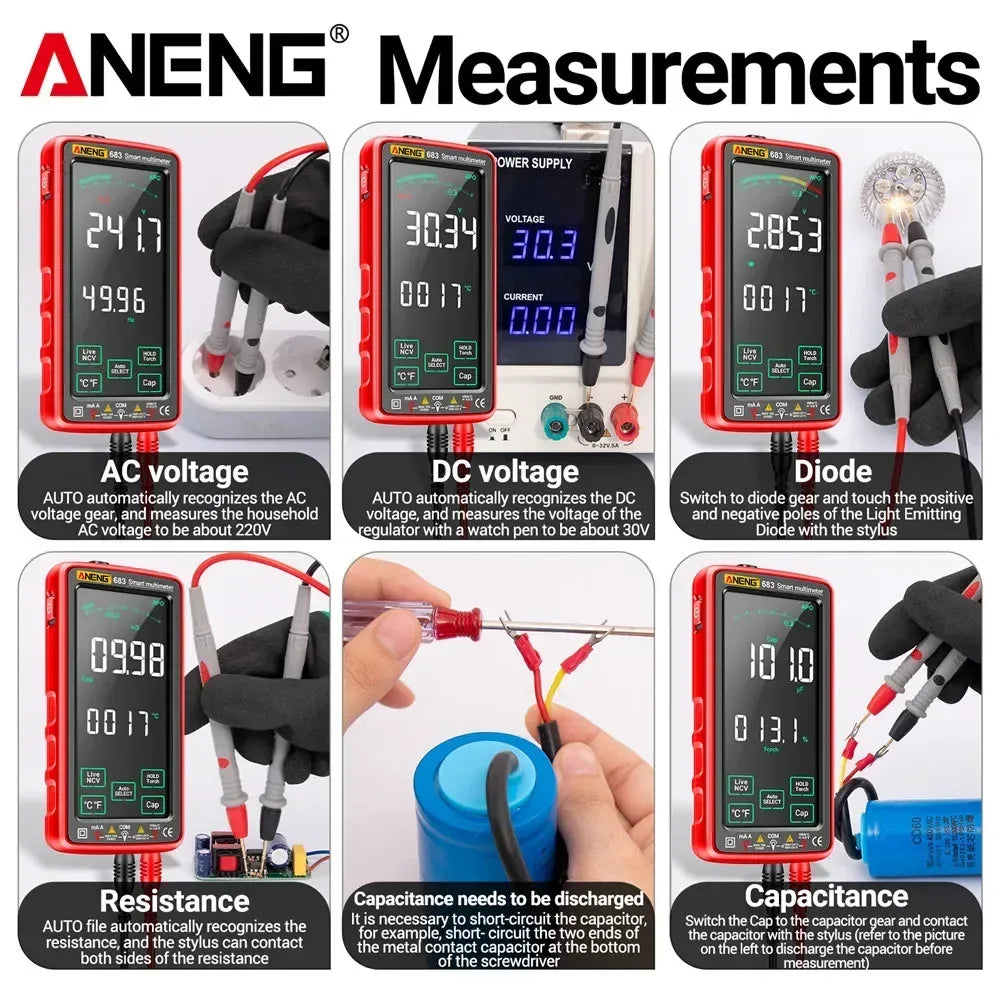

It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off.
The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.
Summary:
Manual Range and Auto Range
Full range overloaded protectection
The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC
Fuse Protection:uA/mA
Display:6000 Counts LCD monitor with analog bar

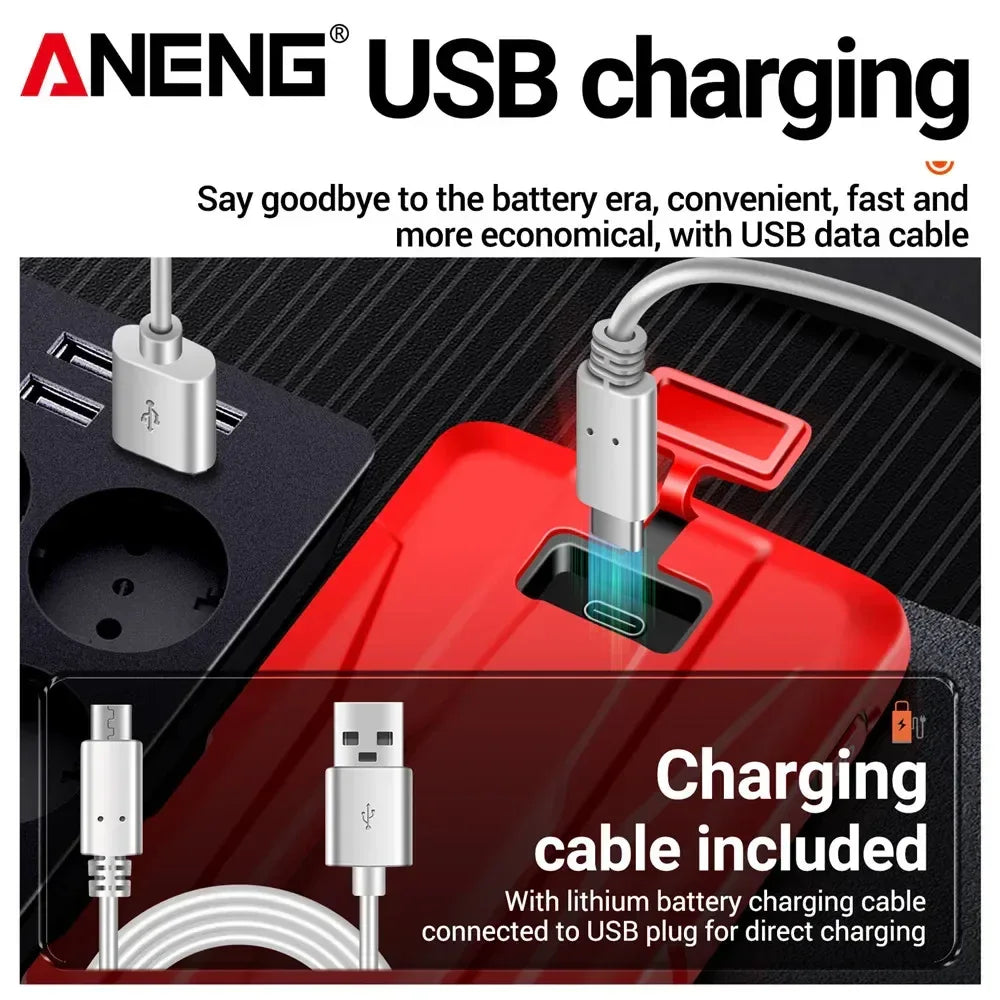

Battery Type:3.7V/2800mA rechargeable battery

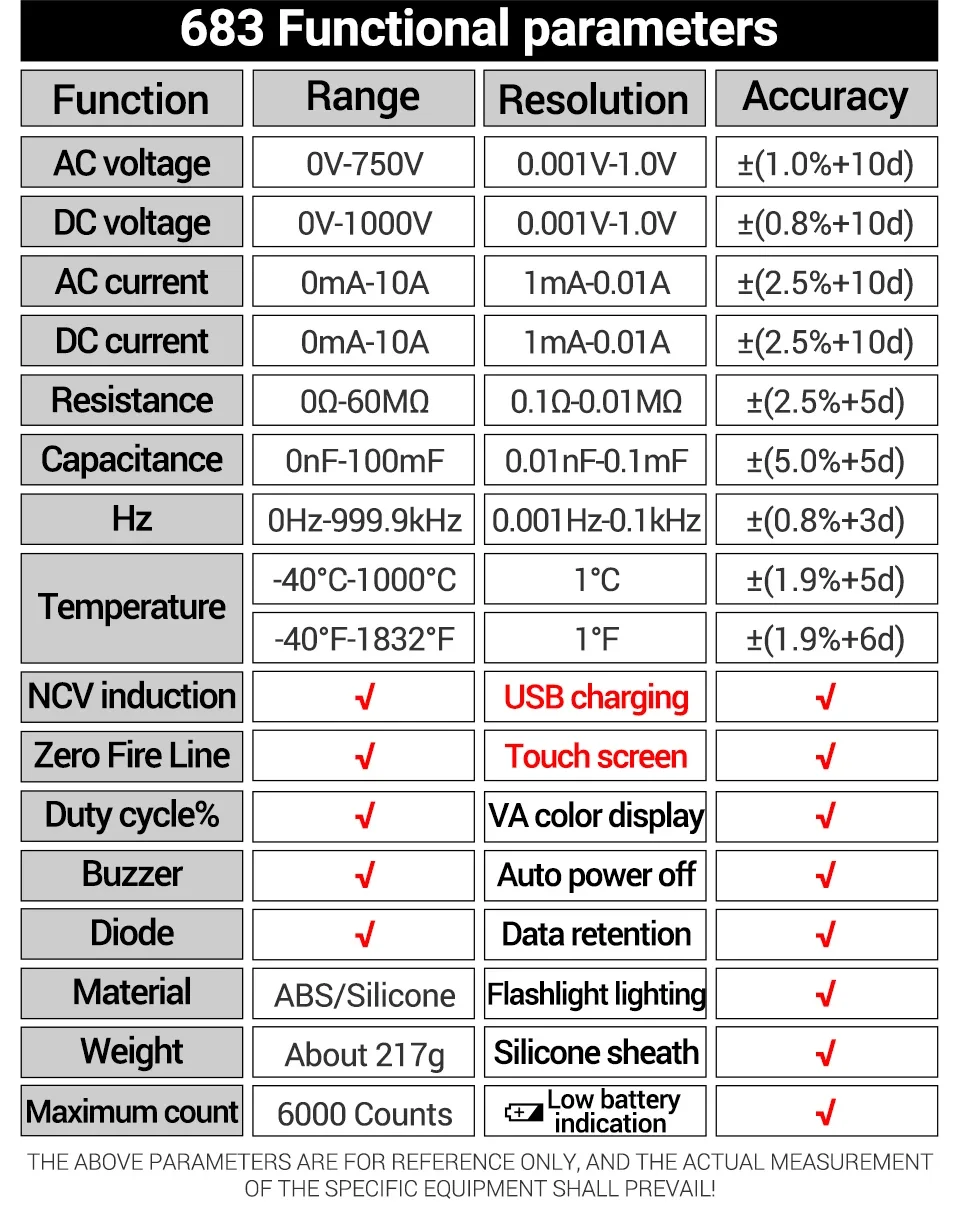

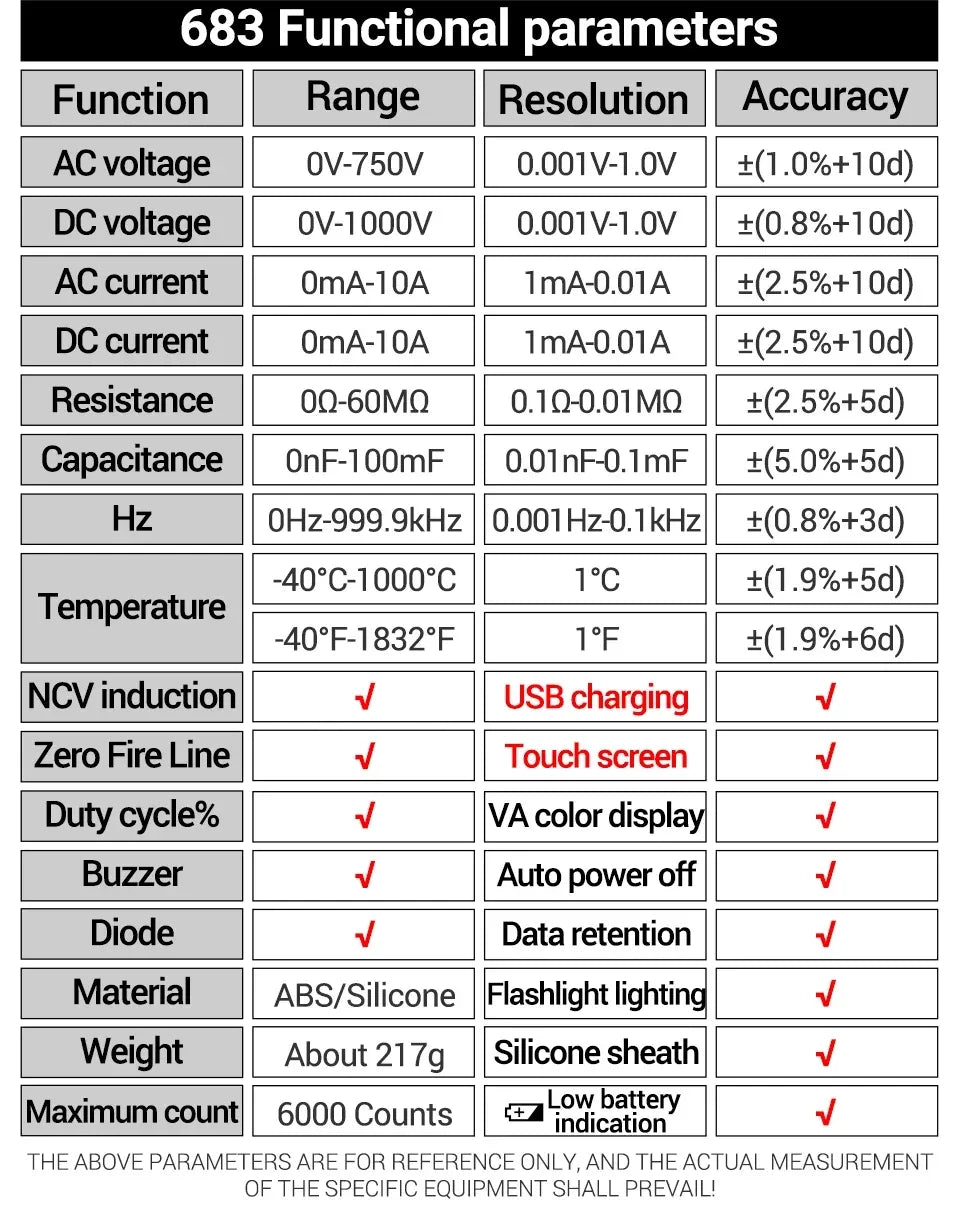

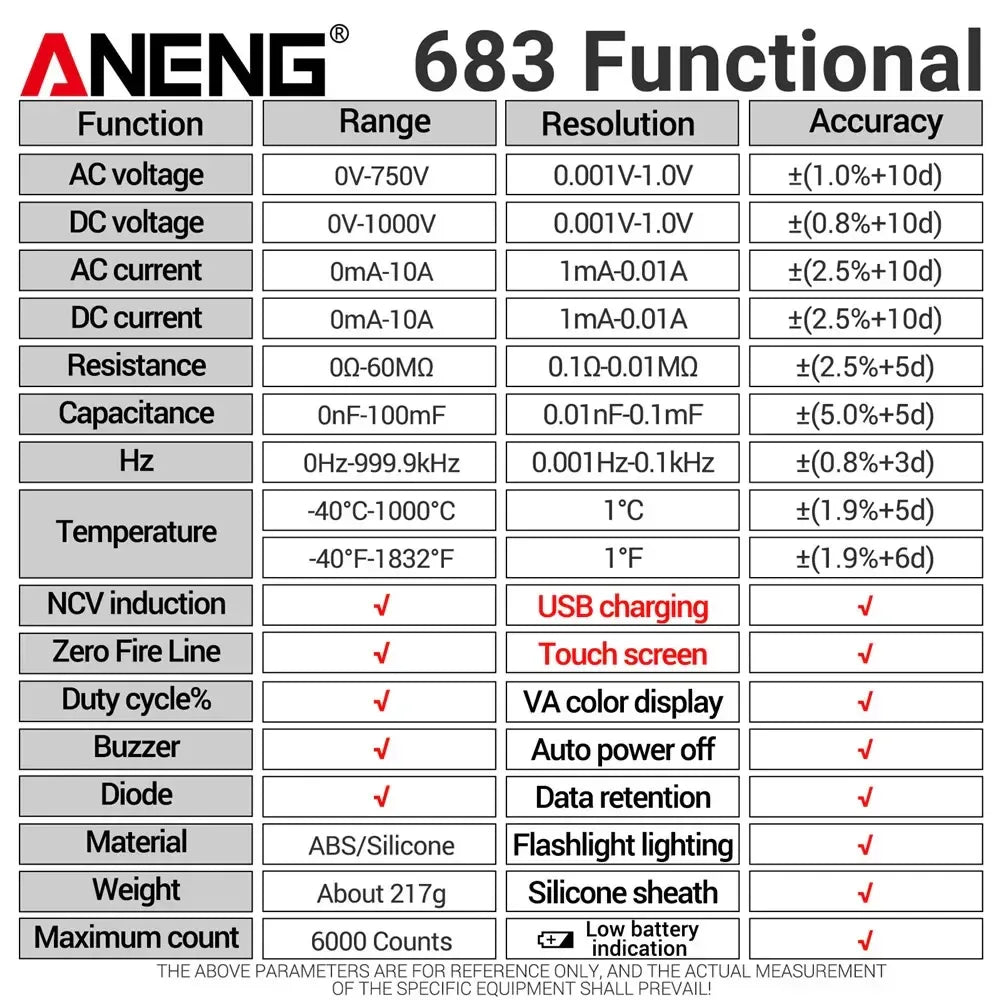

Specification:
DC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.5% readings+3digits) |
|
600V/1000V |
0.1V/1.0V |
+-(0.8% readings+10digits) |
AC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.8% readings+3digits) |
|
600V/750V |
0.1V/1.0V |
+-(1.0% readings+10digits) |

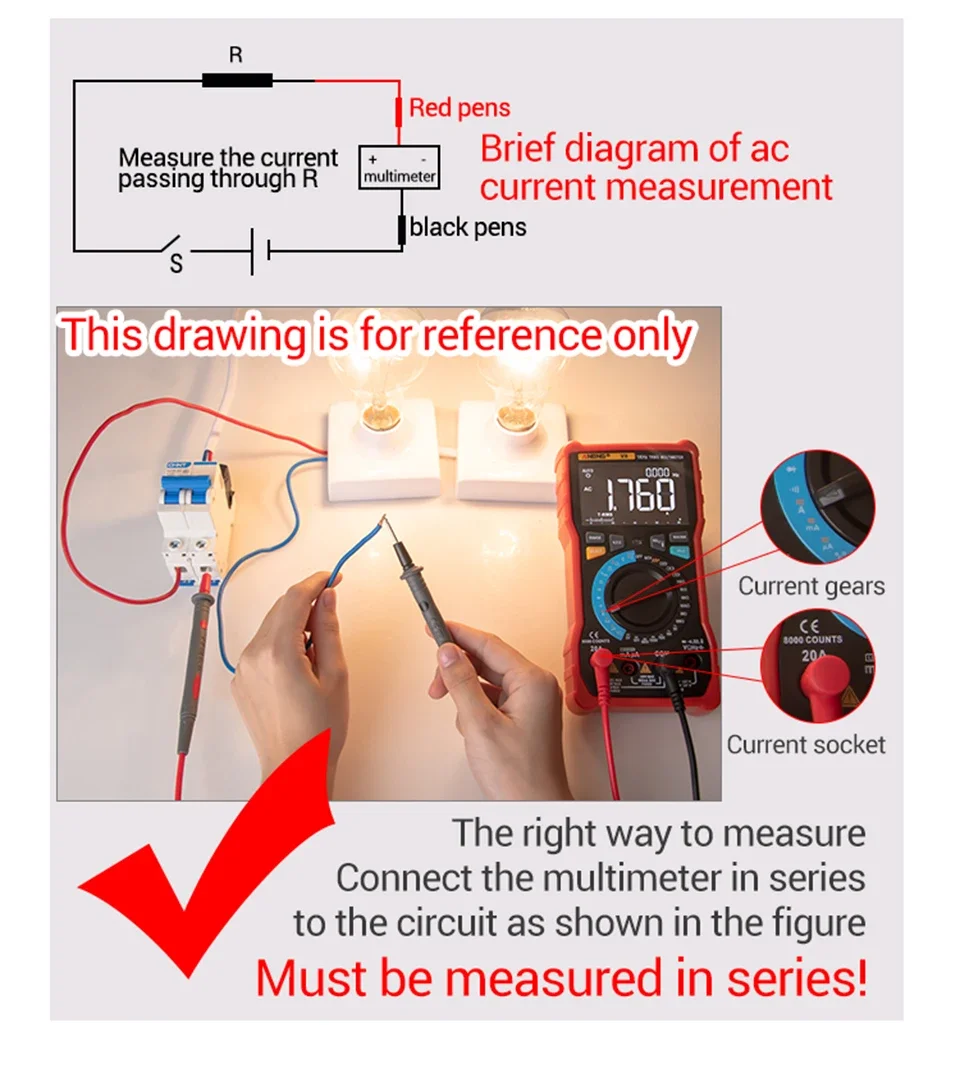

AC and AC Current
|
Measuring Range |
Resolution |
Accuracy |
|
6000mA |
1mA |
+-(1.0% readings+5digits ) |
|
10A |
0.01A |
+-(2.5% readings+10digits ) |
Resistance
|
Measuring Range |
Resolution |
Accuracy |
|
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% readings+3digits) |
|
6MΩ |
0.001MΩ |
+-(1.2% readings+3digits) |
|
60MΩ |
0.01MΩ |
+-(2.5% readings+5digits) |

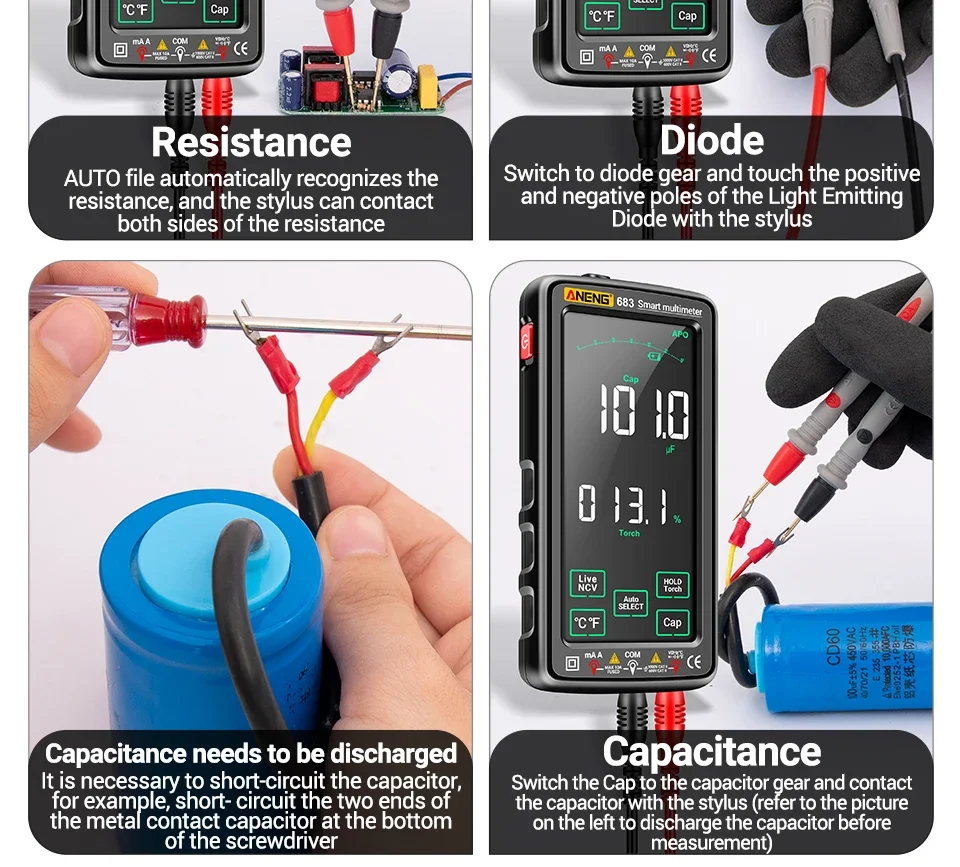

Capacity
|
Measuring Range |
Resolution |
Accuracy |
|
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0%Readings+20 digits) |
|
60mF |
0.01mF |
+-(5.0%Readings+5 digits) |
|
100mF |
0.1mF |
for reference |
Frequency
|
Measuring Range |
Resolution |
Accuracy |
|
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% readings+3digits) |
|
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% readings+3digits) |
Temperature
|
Measuring Range |
Resolution |
Accuracy |
|
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
|
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
|
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
|
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
|
Diode Test |
Yes |
Circuit on/off Test |
Yes |
|
Data Hold |
Yes |
Automatic power off |
Yes |
|

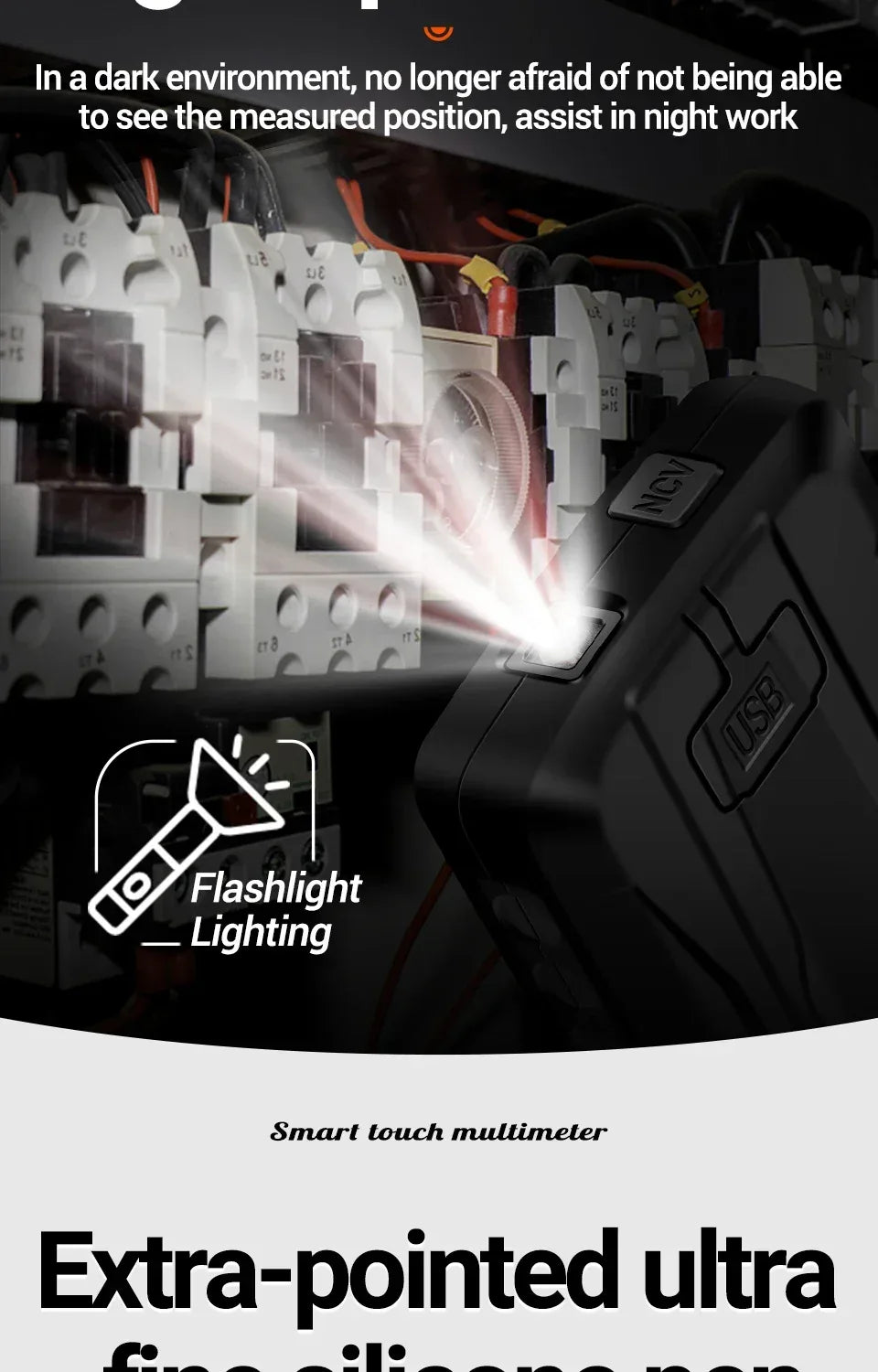

Torch |
Yes |

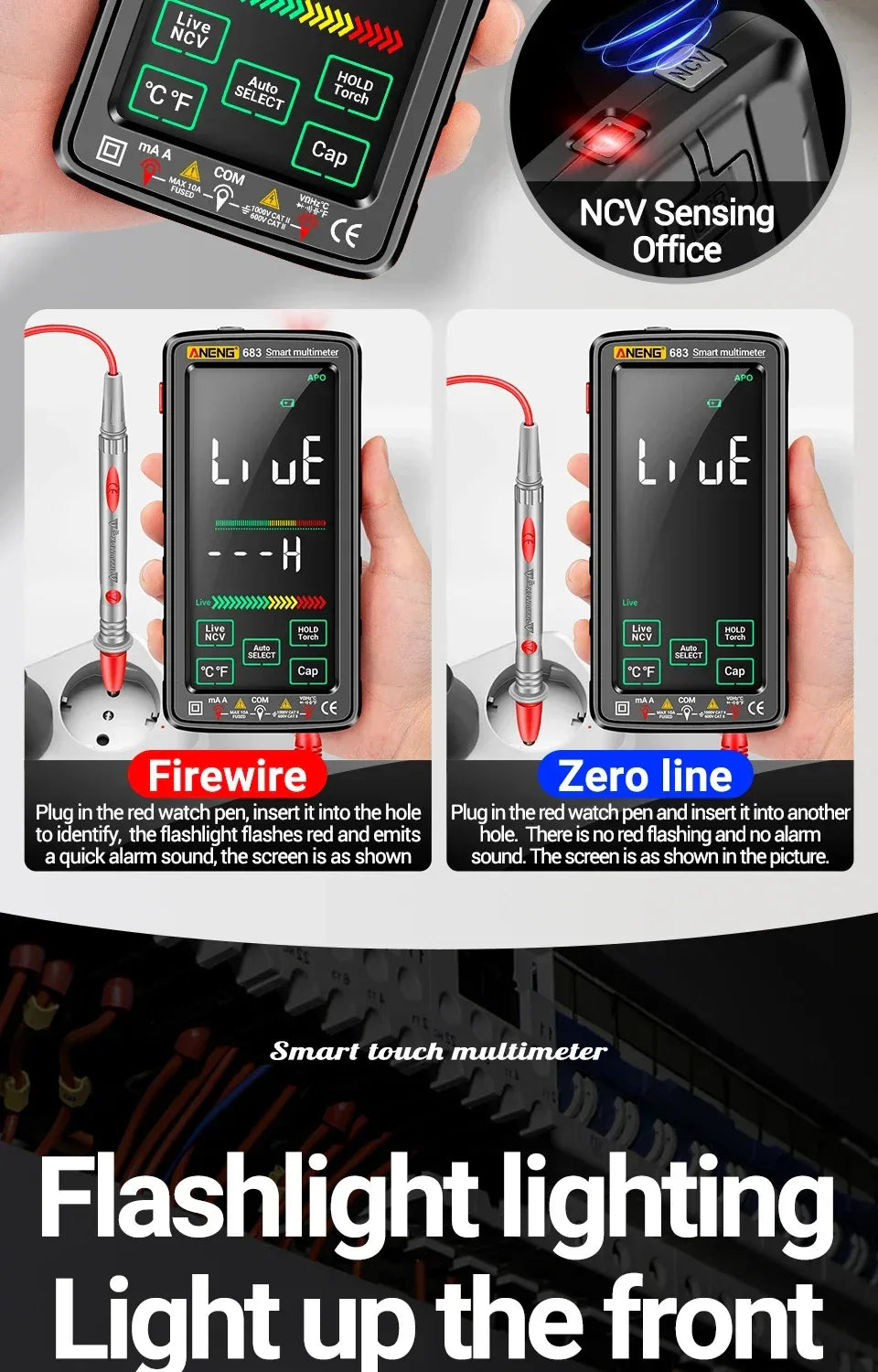

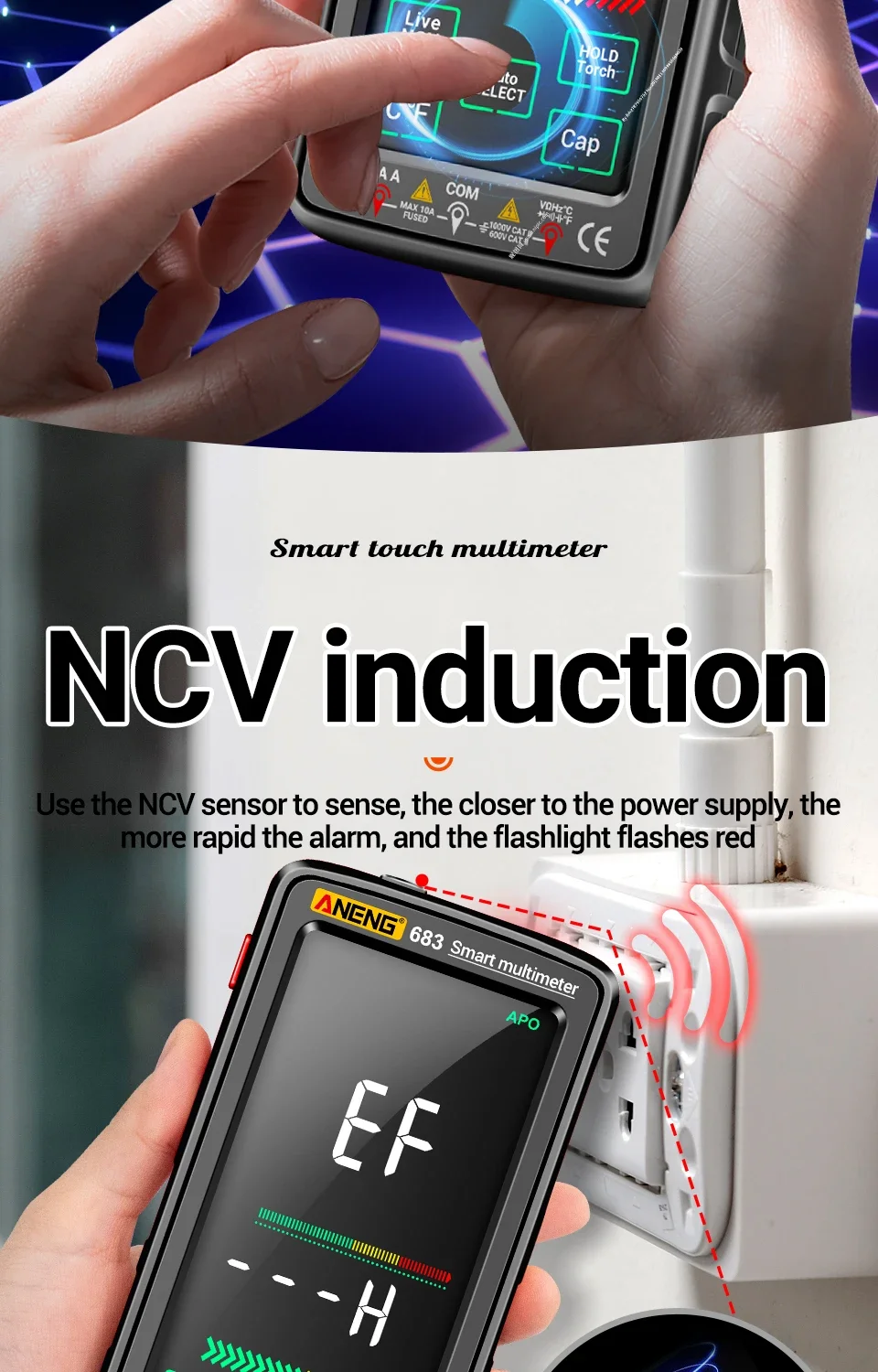

NCV Test |
Yes |
|

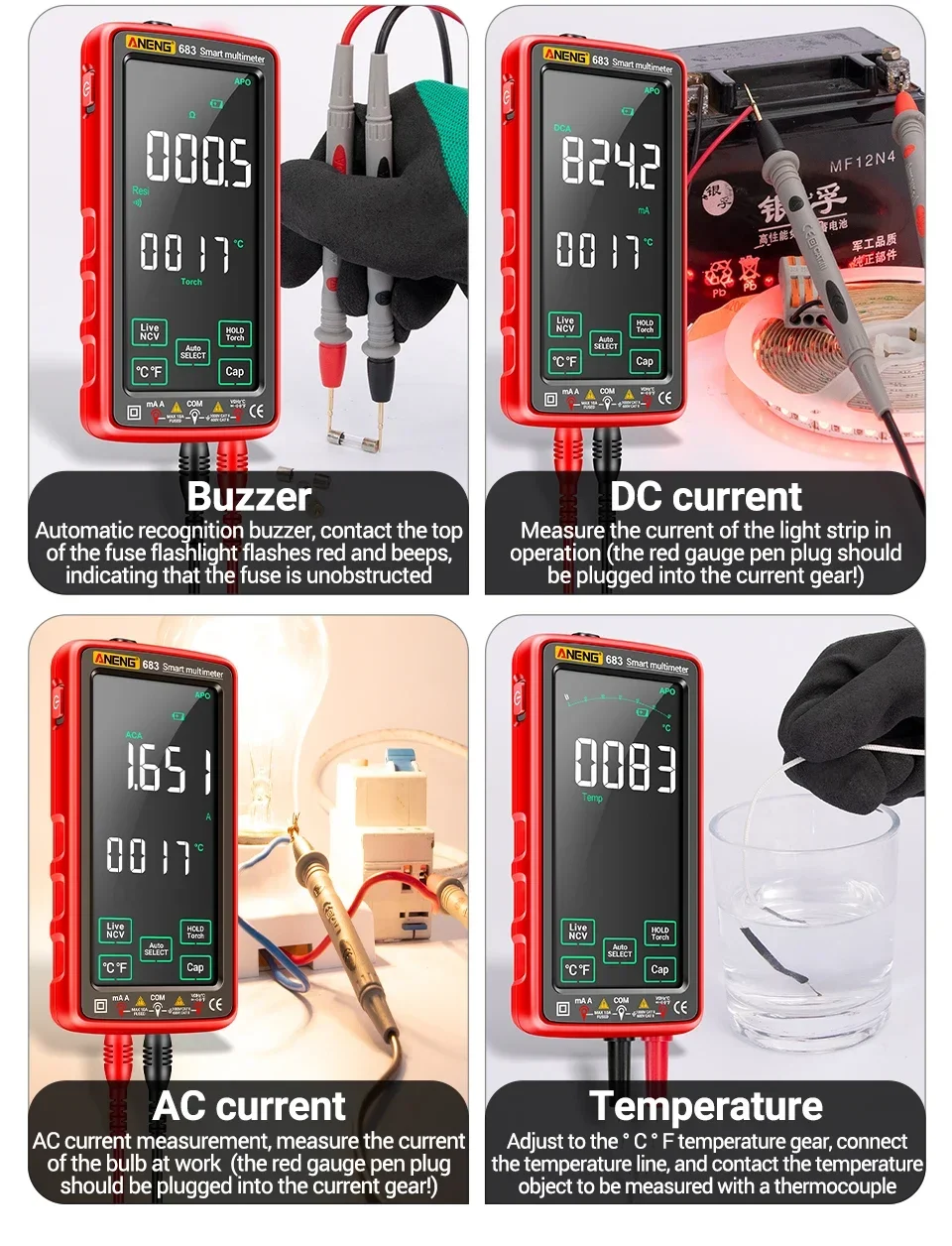

Buzzer |
Yes |

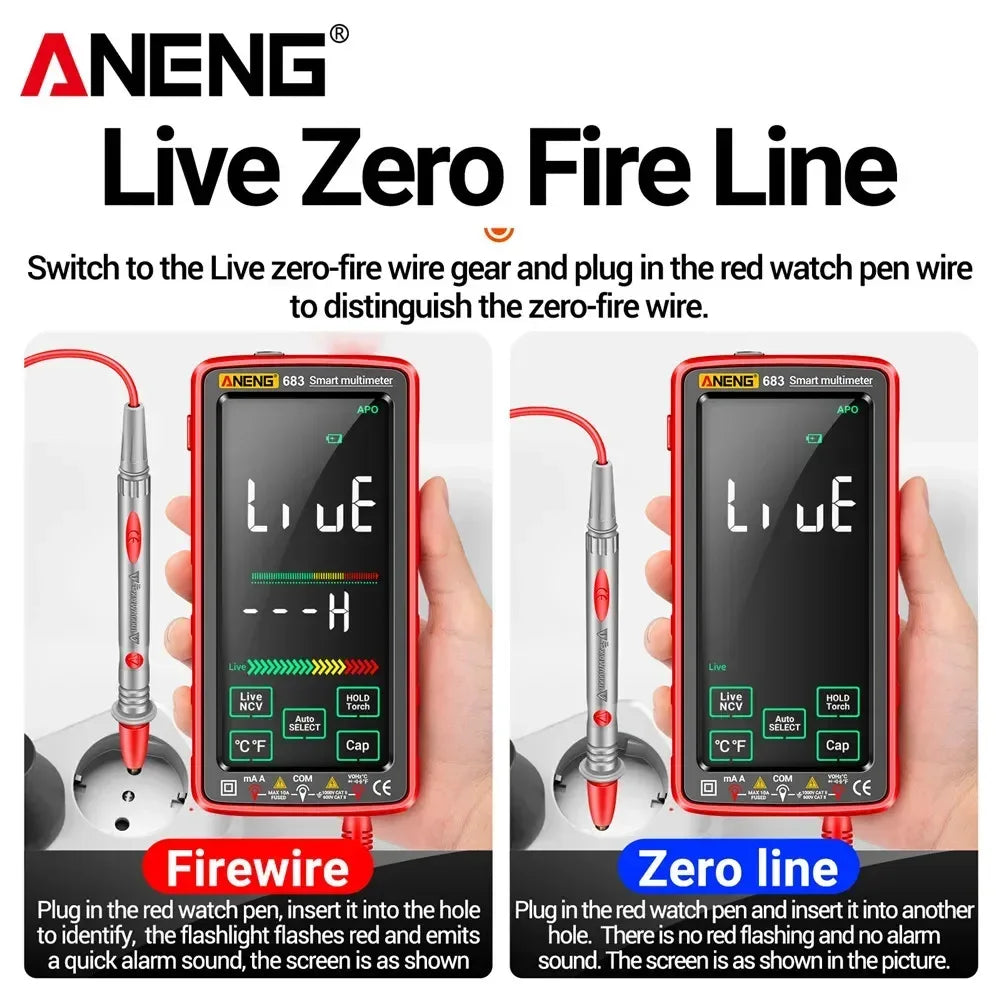

Firing line Test |
Yes |

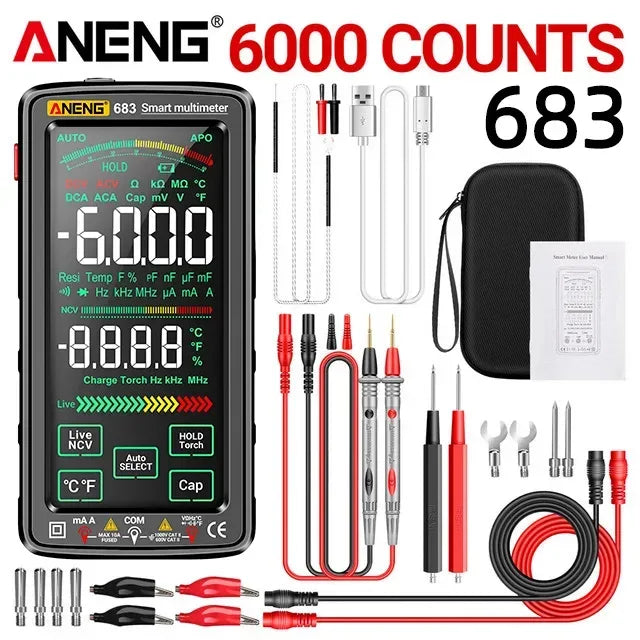

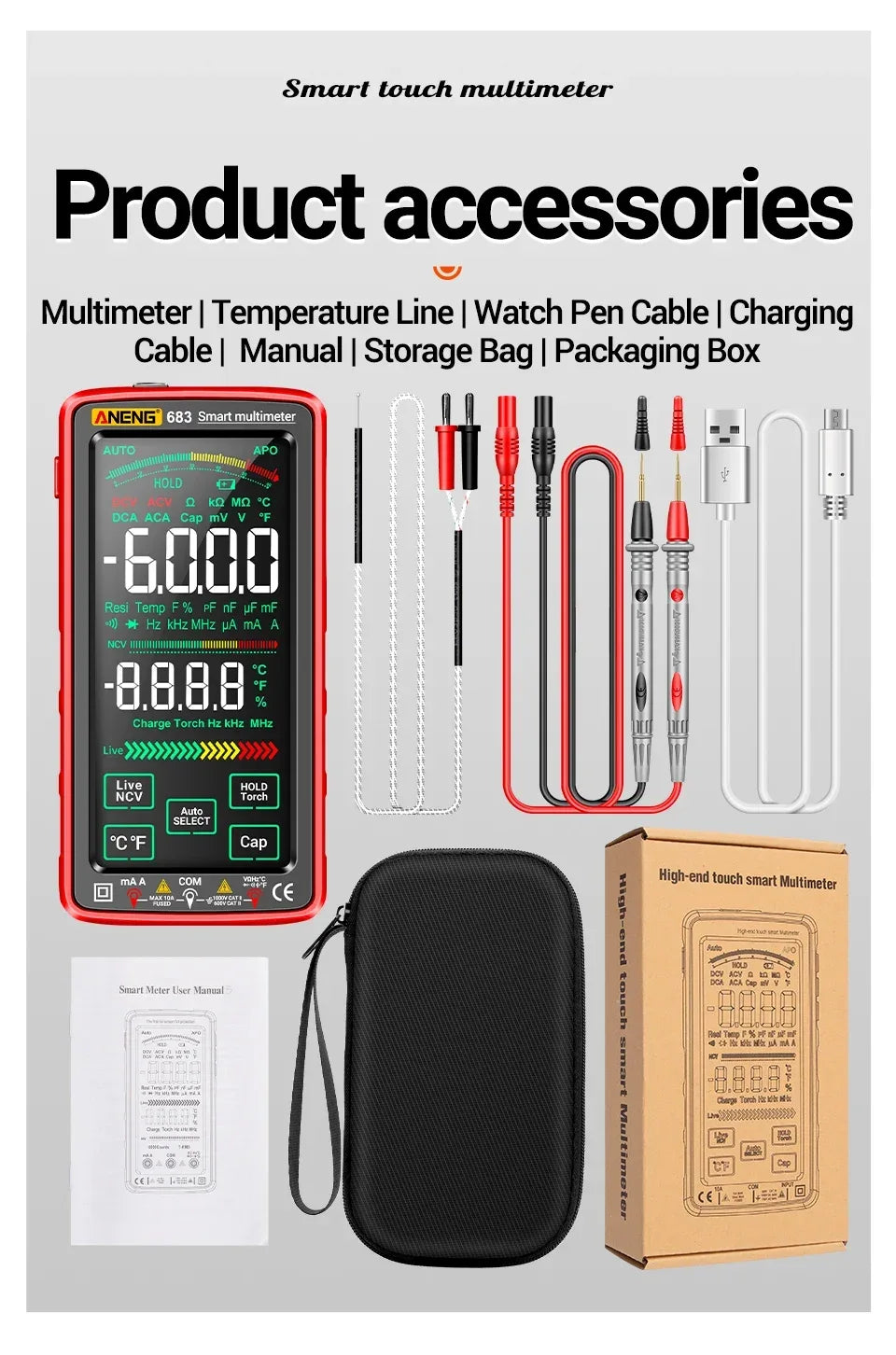

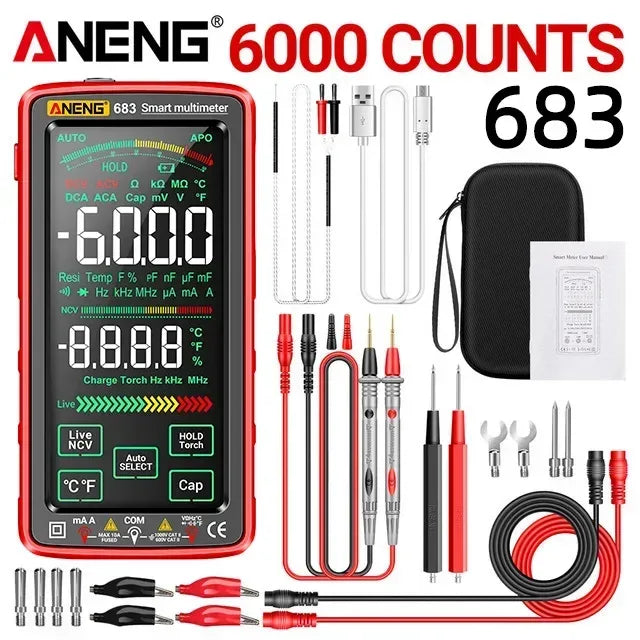

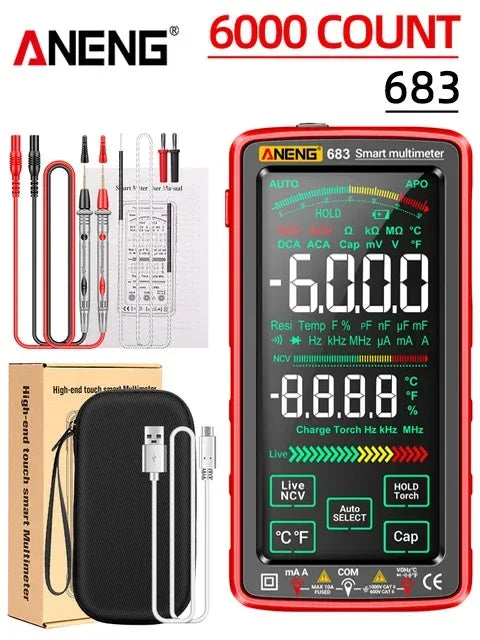

Package Included:
As the picture showed
