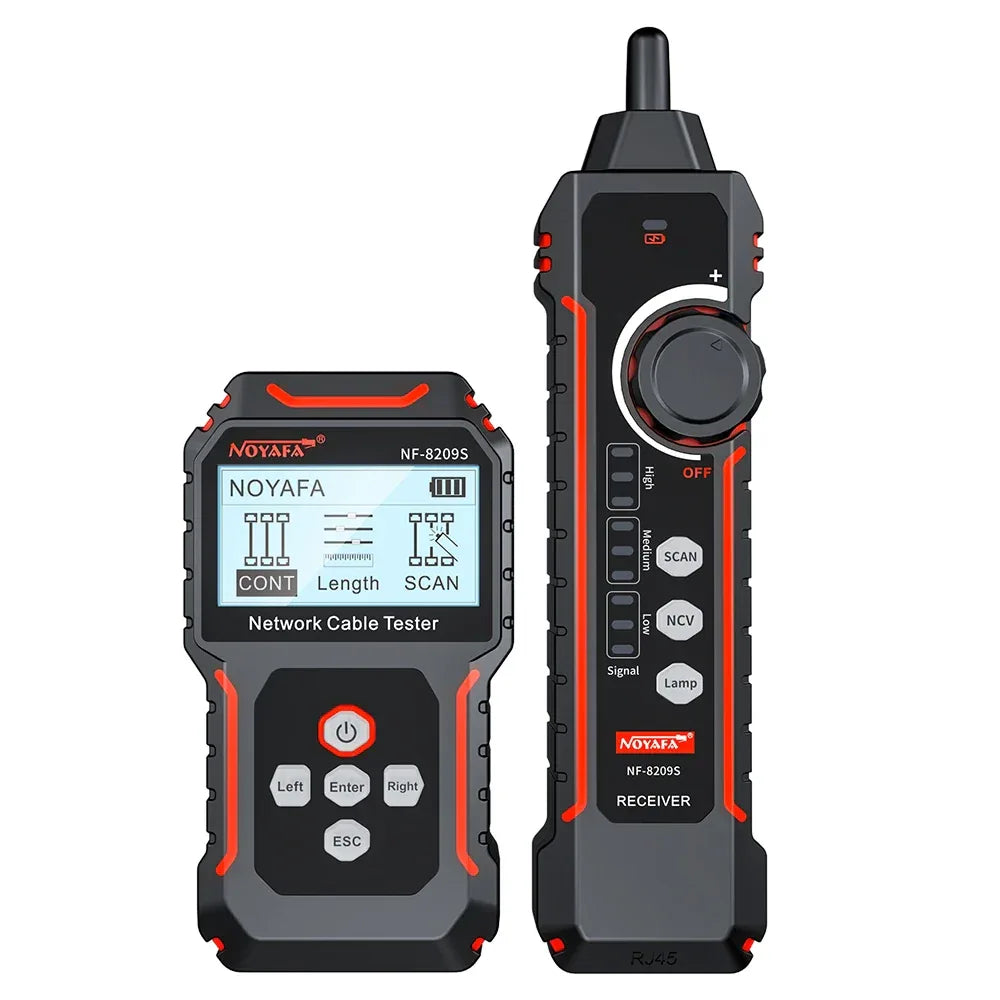

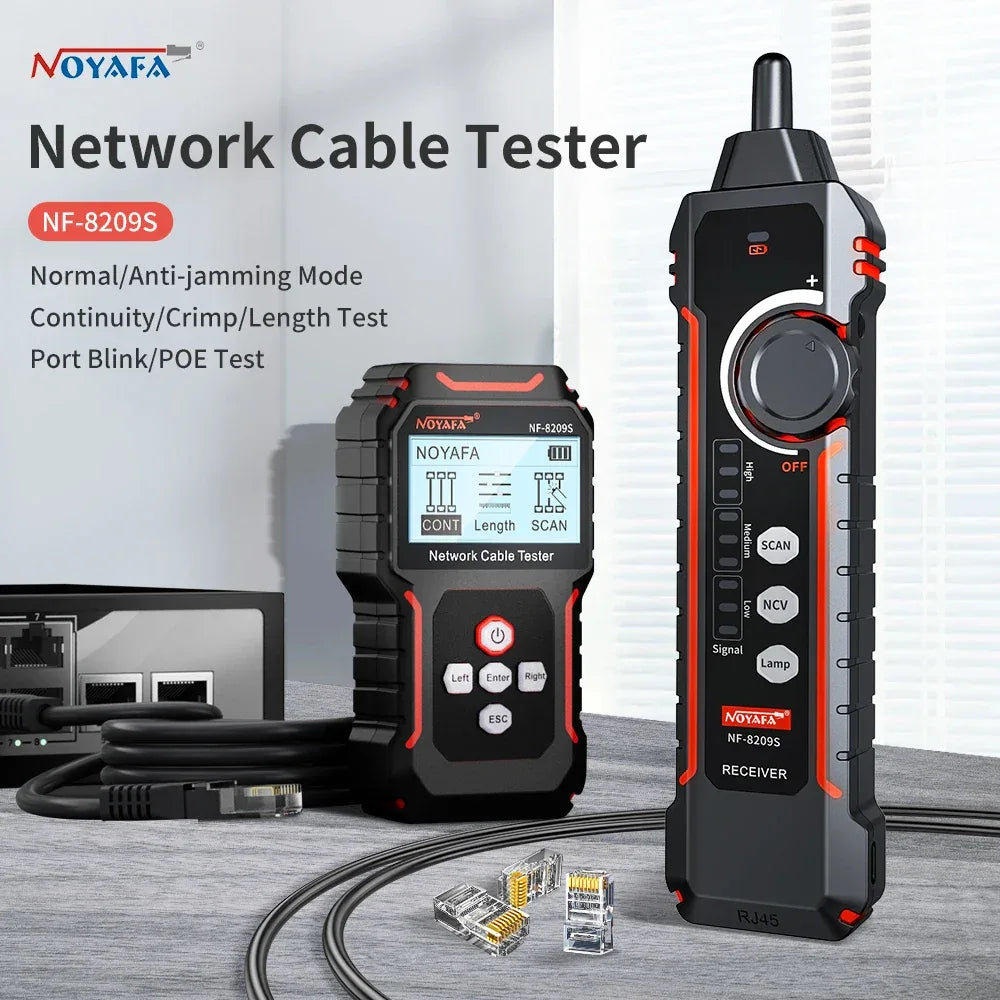

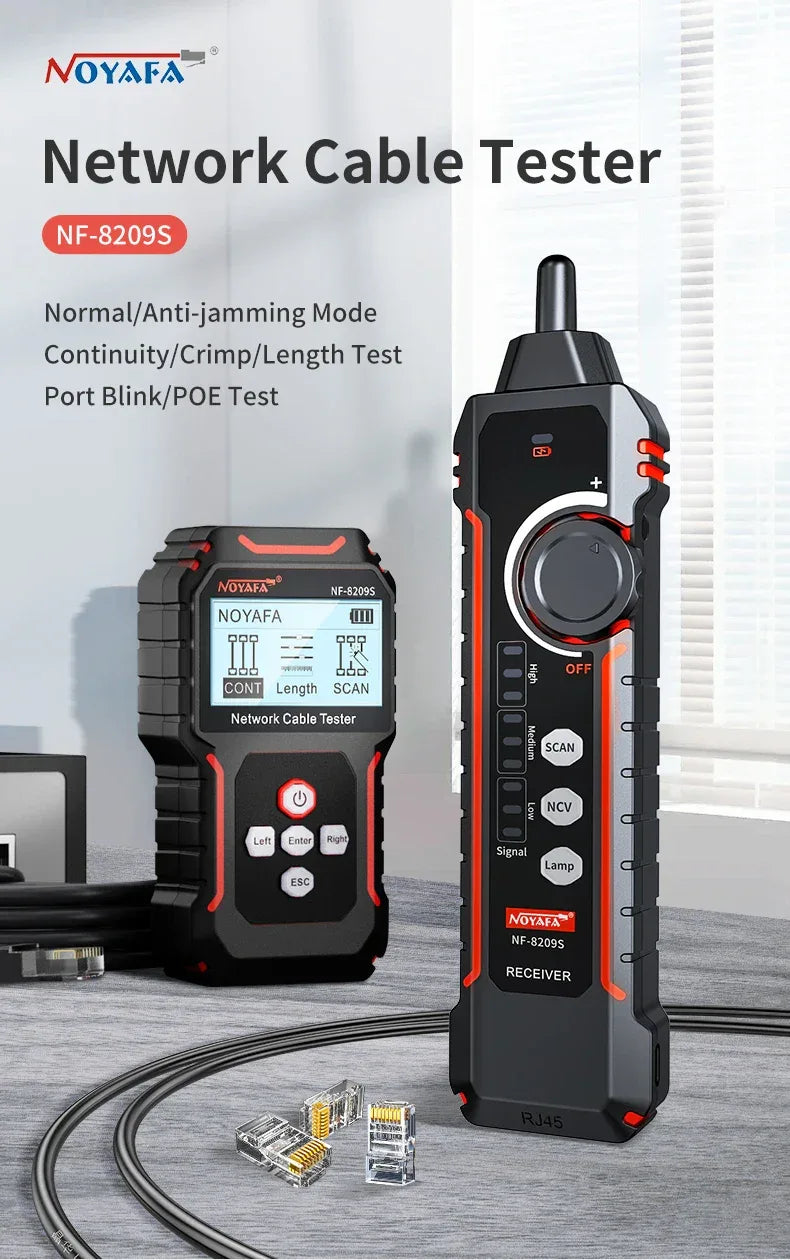

Noyafa NF-8209S LCD Network Cable Tester – Wire Tracker & PoE Current Length Tester
Regular price
£401.99
Sale price£203.84
Save £198.15
Tax included.
- Free worldwide shipping
- In stock, ready to ship
Get it between -
SPECIFICATIONS
Battery Included: Yes
Brand Name: NOYAFA
Noyafa NF-8209S LCD Network Cable Tester – Wire Tracker & PoE Current Length Tester
Certification: CE
High-concerned chemical: None
Model Number: NF-8209S
Noyafa Model: NF-8209S
Origin: Mainland United Kingdom
Other Function: Lighting & NCV
Port 1: RJ45
Port 2: Port Flash
Tracking Type: PoE, RJ45 Cable
Type: PoE Splitter
Model: NF-8209S(Product Features)
1.Hunting test: normal mode/anti-jamming mode
2.Wire test: cross, open circuit, short circuit, normal, etc.
3.Length test: network cable length breakpoint test, no calibration required

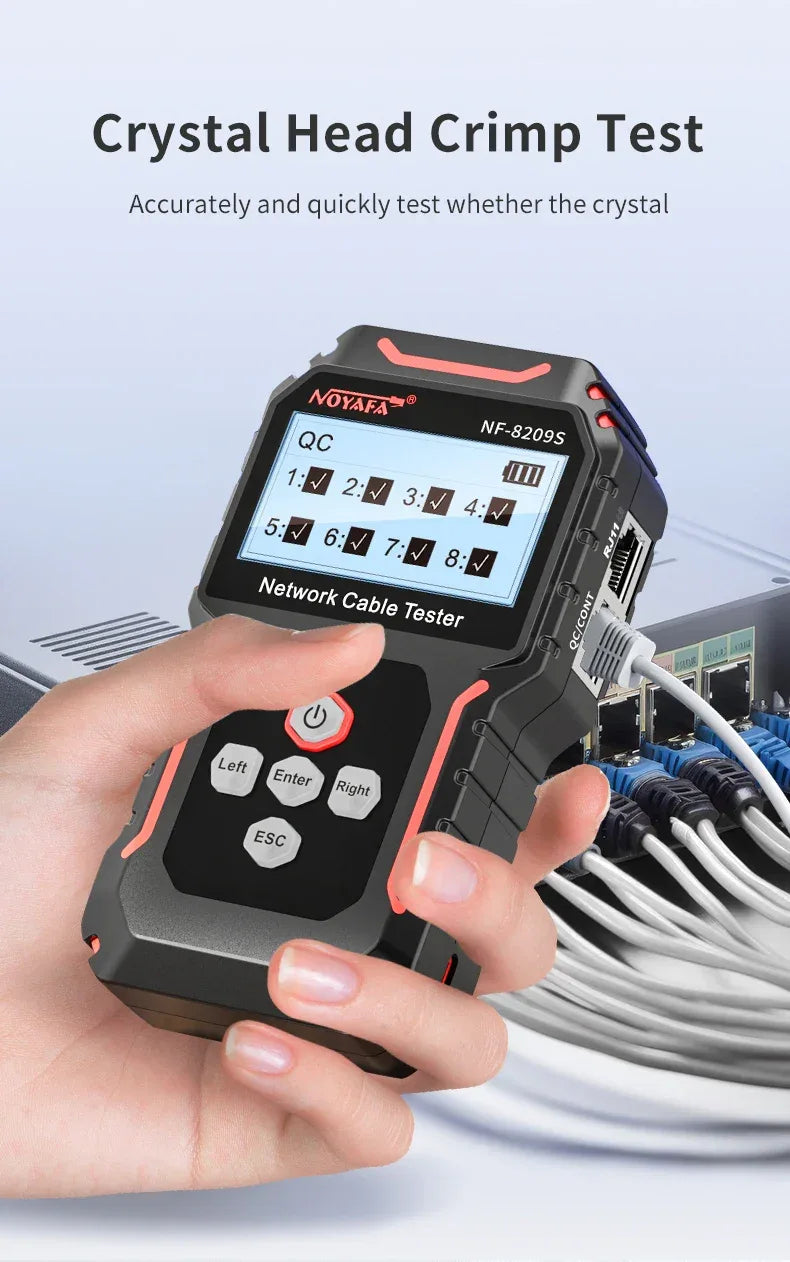

4.Pressing test: test whether the crystal head is pressed well
5.PoE test: power supply core and power supply voltage detection,
6.External interface: USB interface (charging, data copying)
7.Software: Provide standard analysis software for offline analysis
8.Image format: JPEG/Mp4
9.Upgrade: Pending firmware/software upgrade Due to software upgrade: 10.Offline upgrade (computer download estimated upgrade package method)
11.standard/non-standard PoE can be tested
12.Two-color injection molding material is solid, large-capacity lithium battery, 13.long battery life
14.Anti-interference and no noise / ordinary line hunting
15.Line to line, hunting, PoE testing
16.Length test, crimping test
17.NCV induction pen. Lighting function

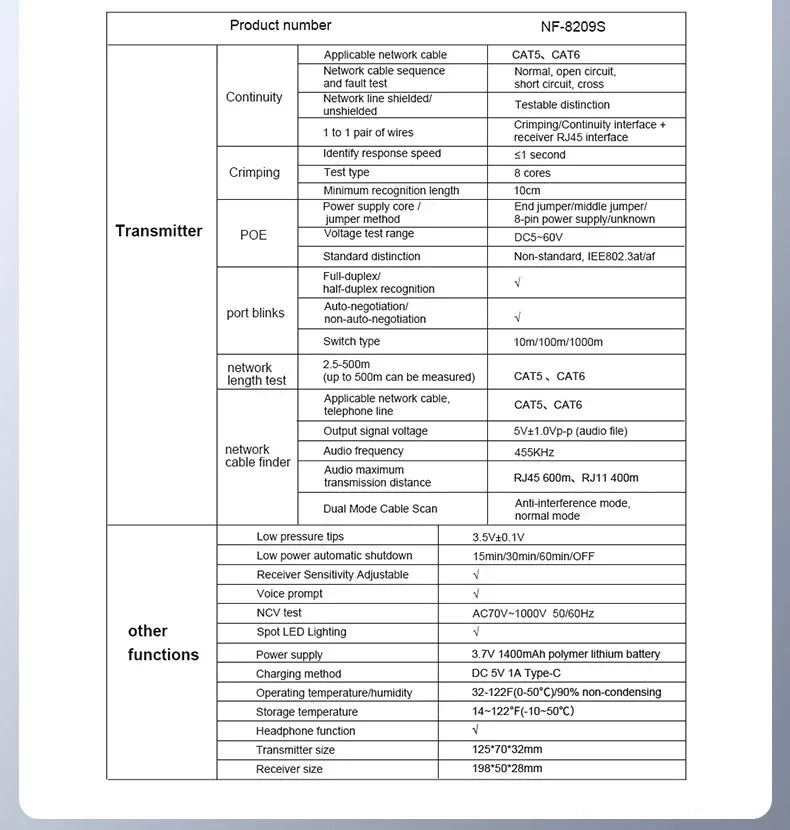

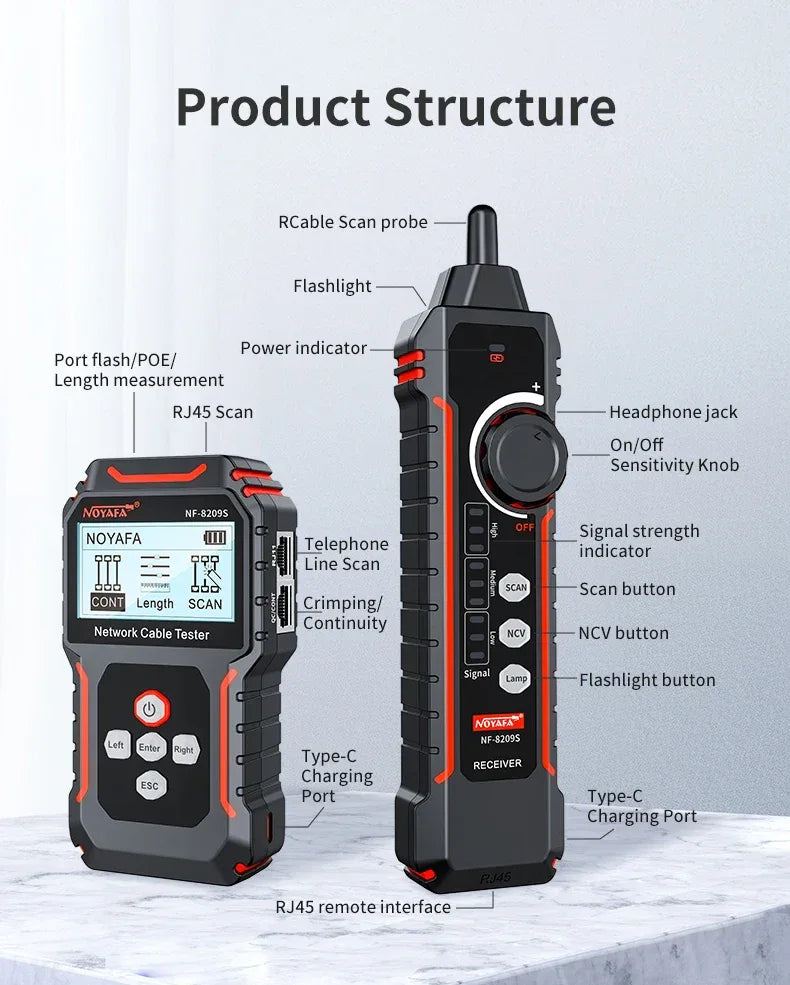

Trans mitter Parameters

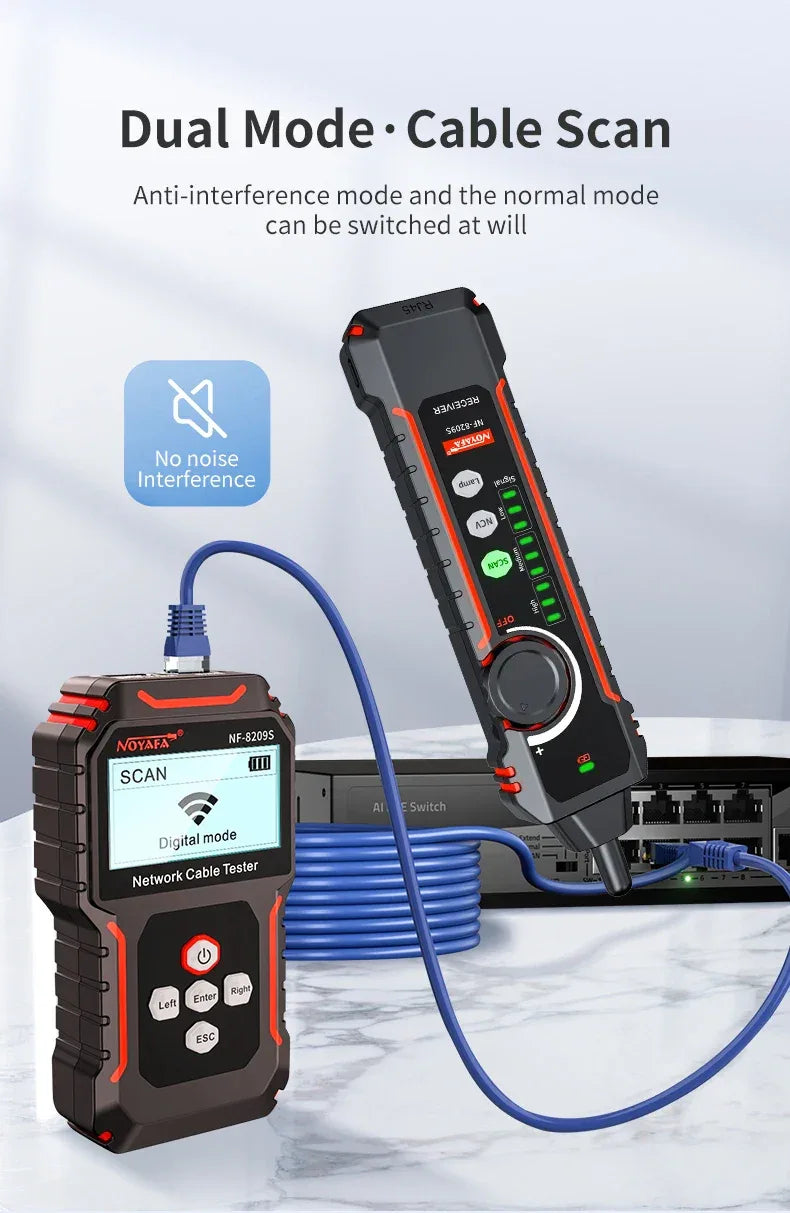

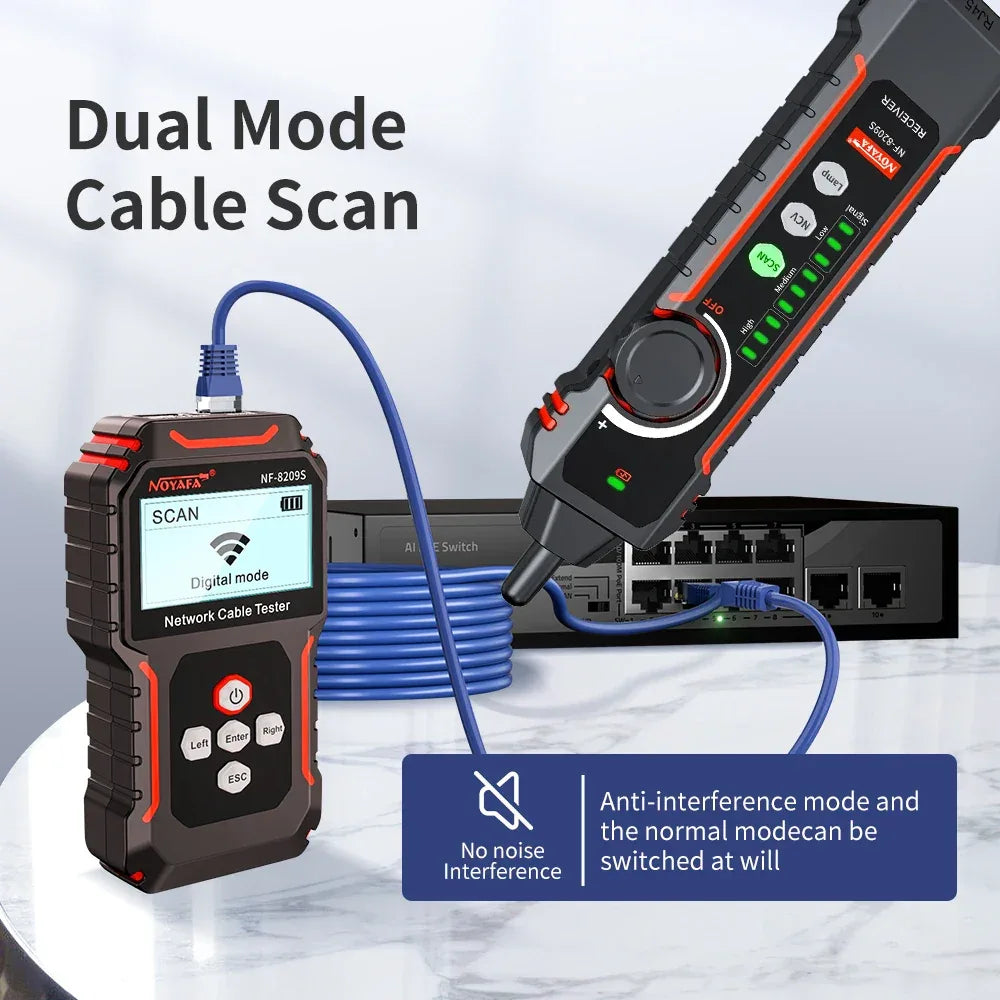

Hunting test: normal mode/anti-jamming mode

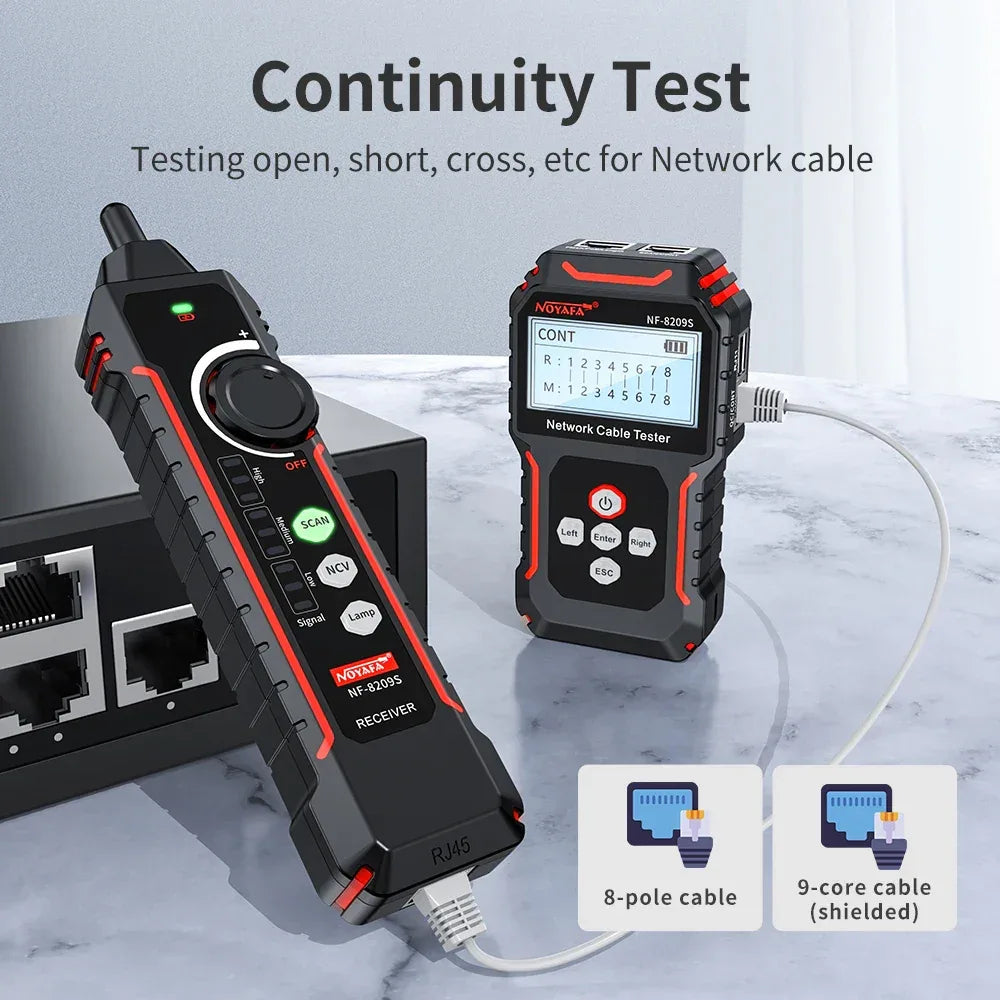

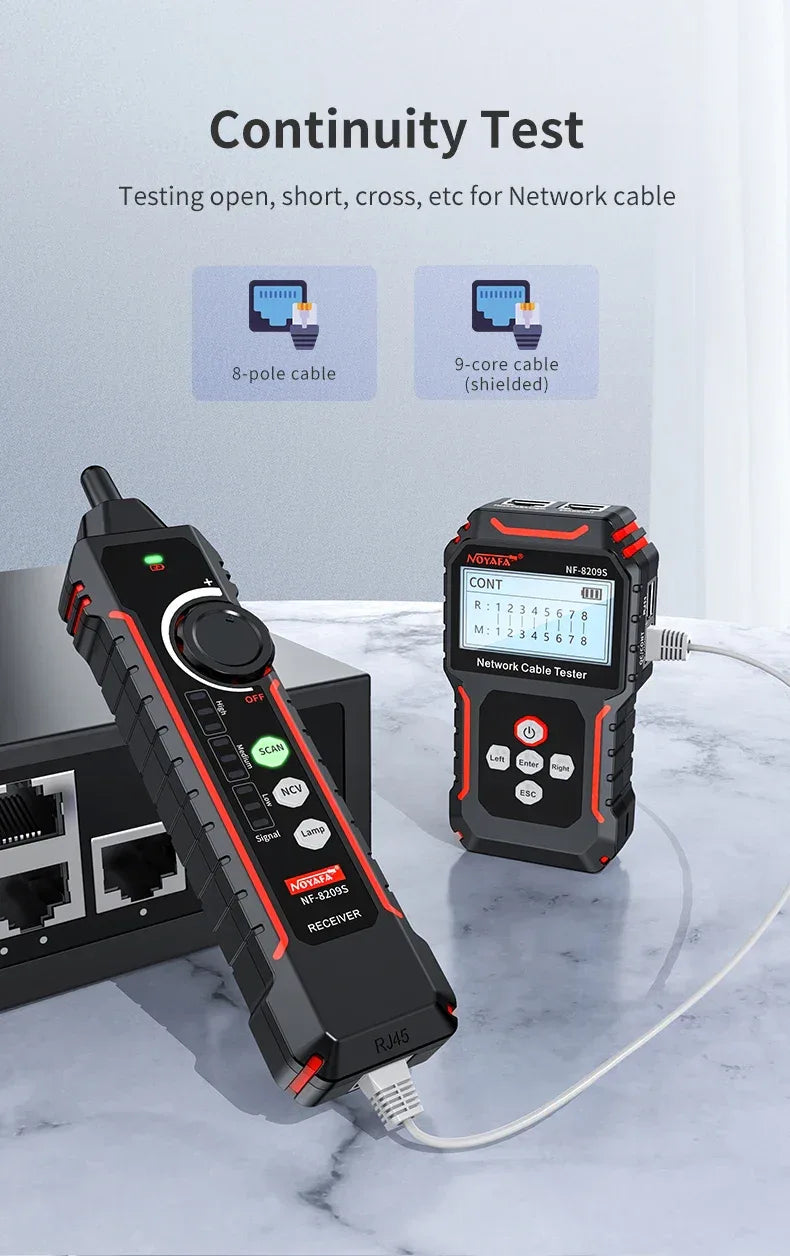

Wire-to-wire test: wire-to-wire short circuit, open circuit, crossover, normal condition

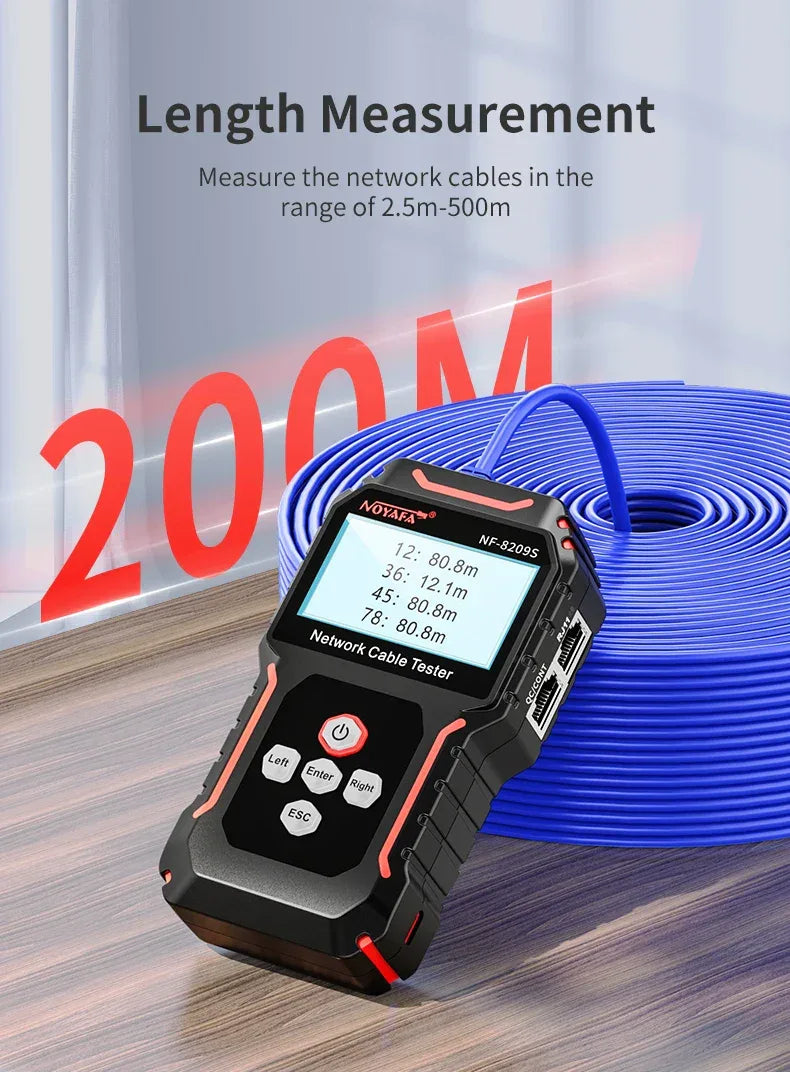

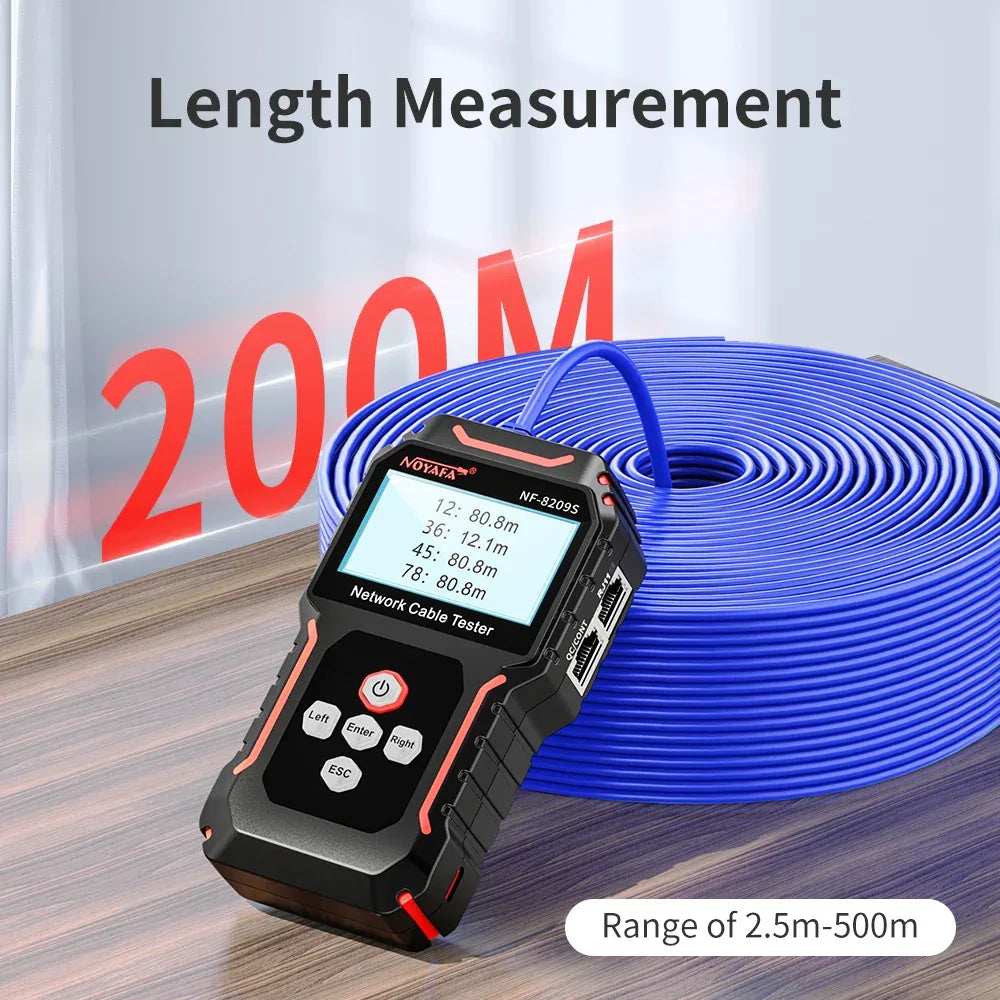

Length test: length measurement range 2.5 meters ~ 200 meters
Hunting test: anti-interference, ordinary hunting
PoE test: equipment standard/non-standard, polarity, voltage, jumper connection, power supply core
Port flashing function: yes
Crimping test: yes
Interface description: 3 RJ45, 1 RJ11

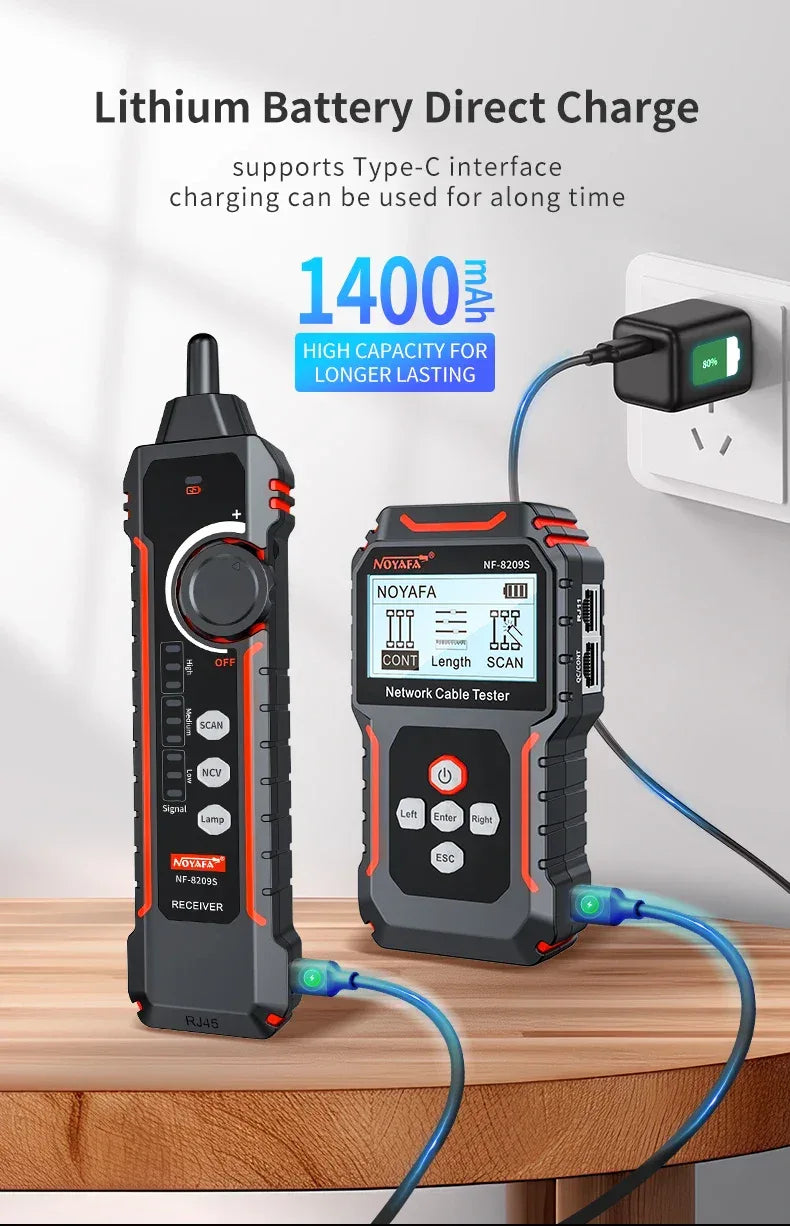

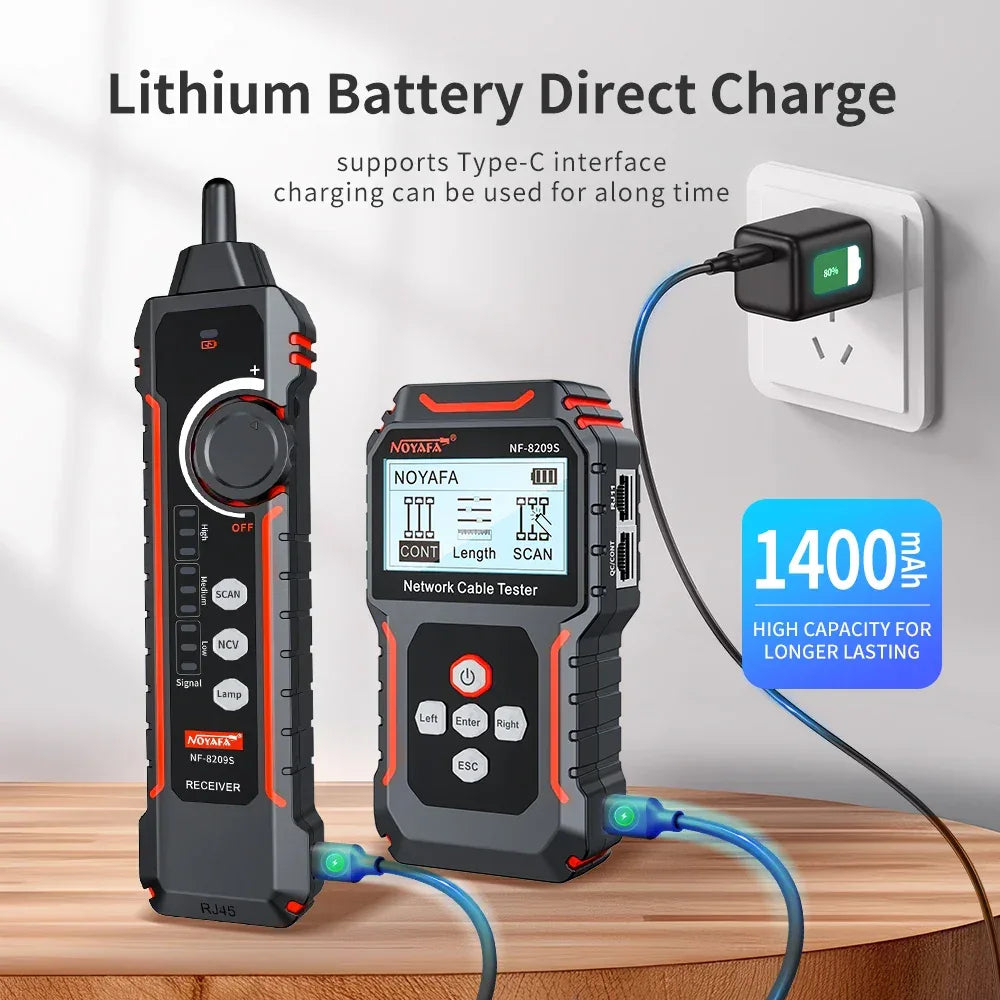

Power supply mode: polymer lithium battery 3.7V 1400mAh (Type-C charging)
Input voltage protection
Receiver parameters
Hunting reception: anti-interference hunting reception, ordinary hunting reception

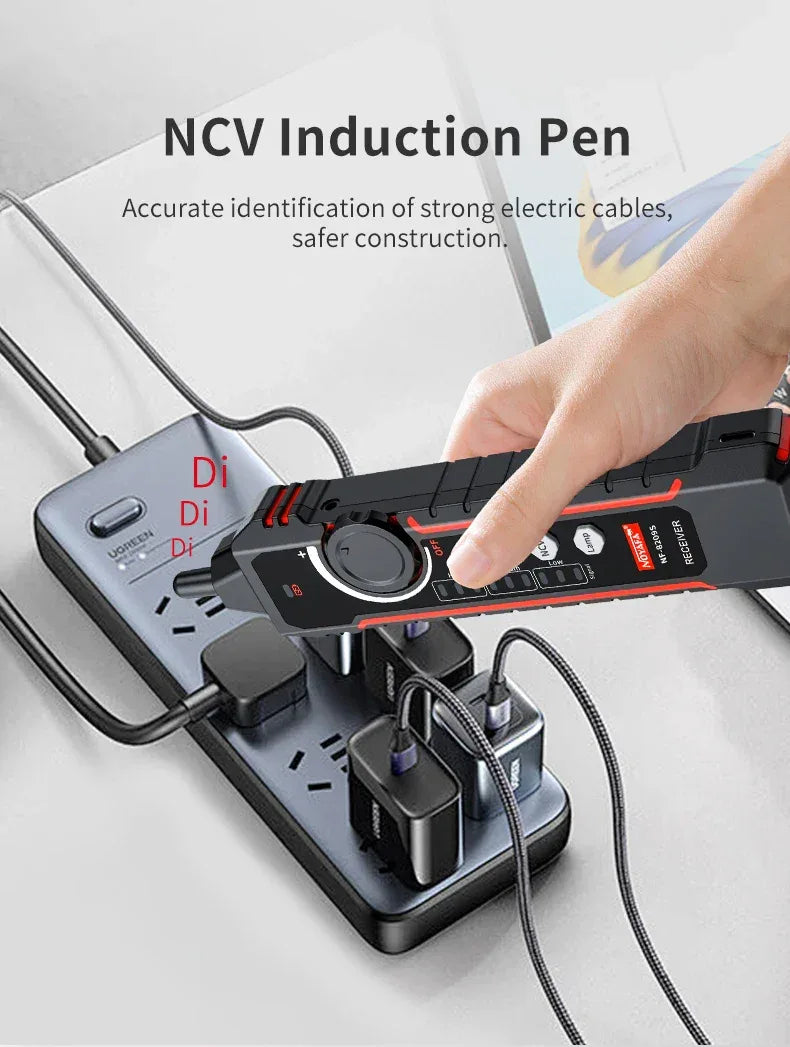

NCV pen function: yes

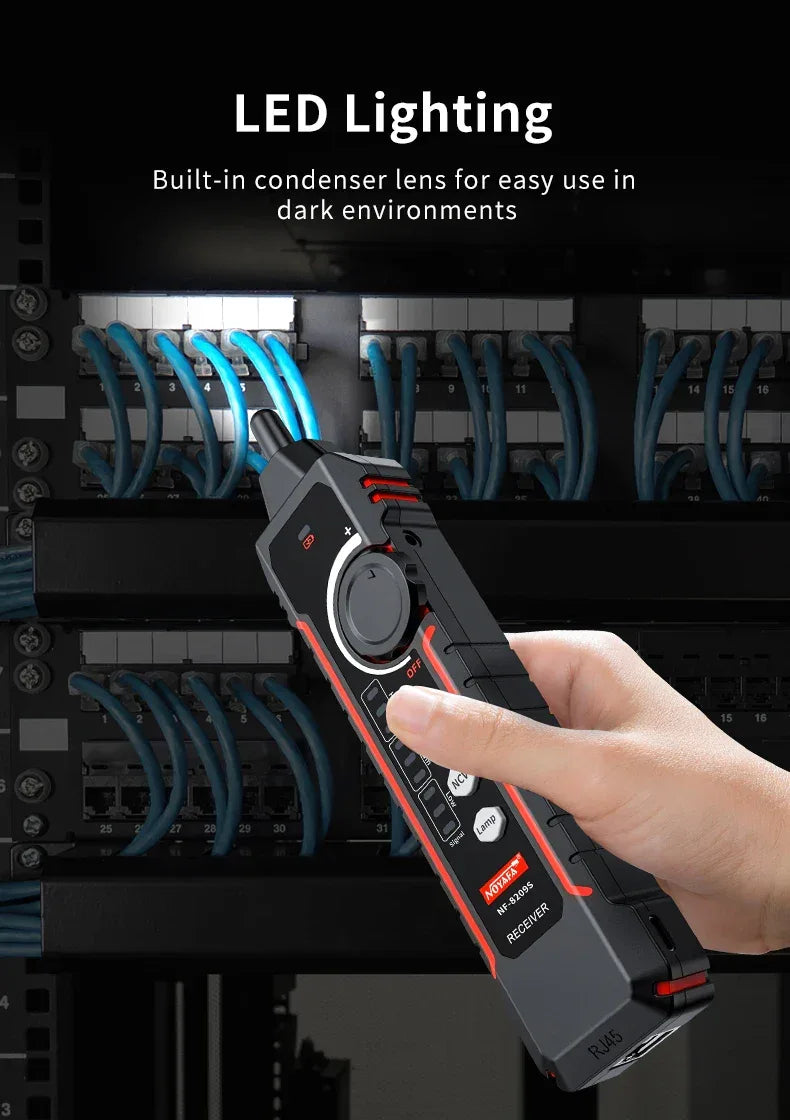

Lighting: LED lighting
Line interface: RJ45
Power supply mode: polymer lithium battery 3.7V 1400mAh (Type-C charging)
Input voltage protection: DC60V
Advantages:
offer digital and analog signaling all in one network toner and probe.PoE detecting and identify the type of PSE.Measure cable length and fault distance accurately by TDR theory.Built-in NCV included in the receiver.
Main Features

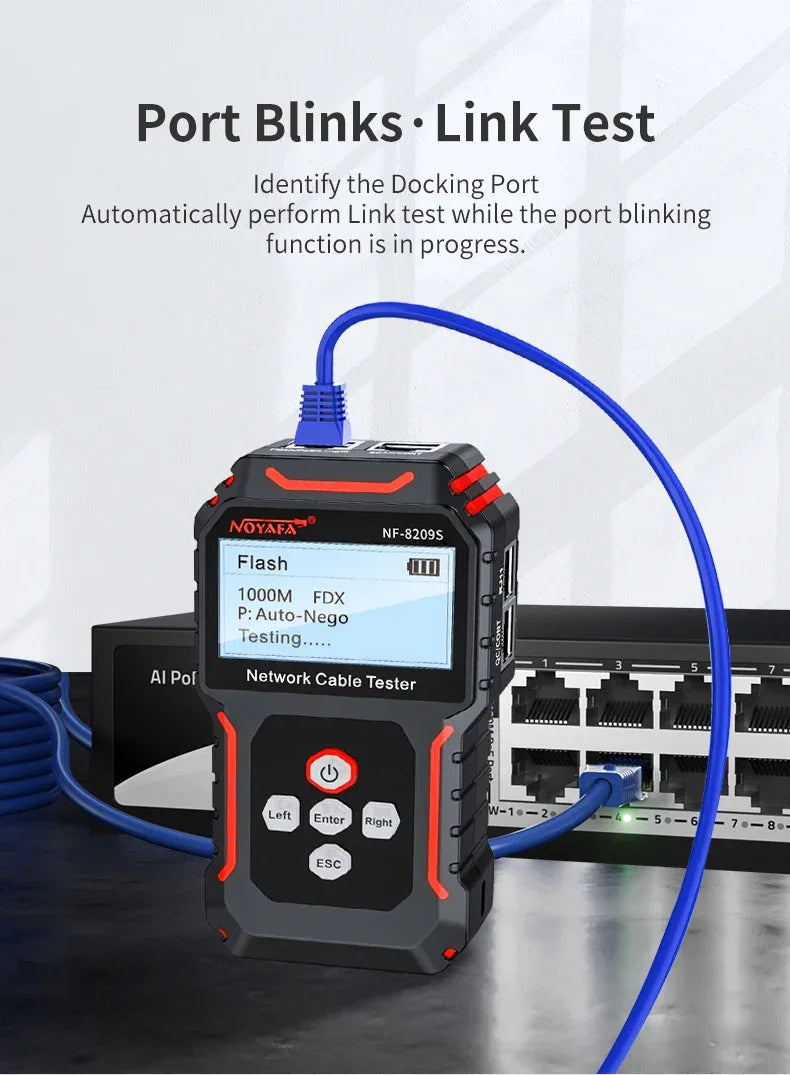

Wire test: cross, open circuit, short circuit, normal, etc.Length test: network cable length breakpoint test, no calibration requiredScan--Analog/Digital mode to locate lan cables.PoE-- available for standard or non-standard PoE switch(5~60V), identify AT or AF standard of PSE type.Port flash--locate network port by the flashing port light onswitchl router.

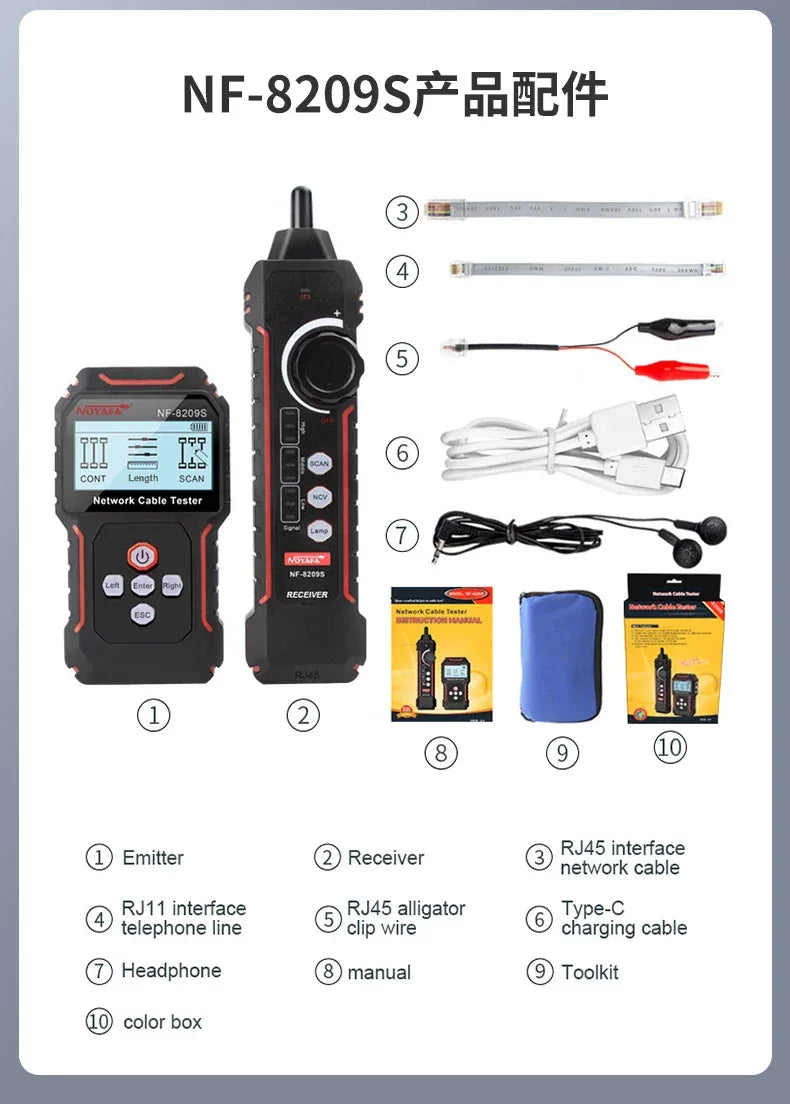

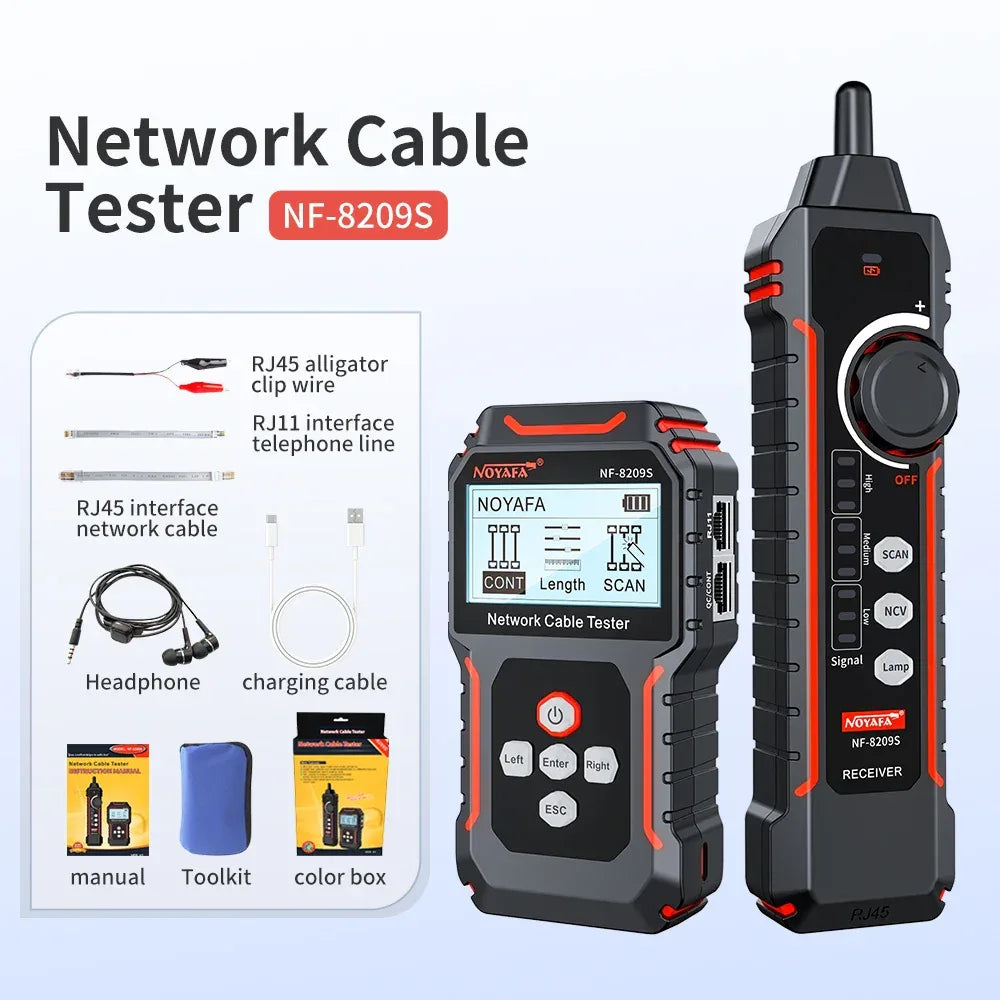

Accessories
Emitter:1pc
Receiver:1pc
Earphone:1pc
able adaptors:1 set
Carry bag:1pc
User manual:1pc
Quality certificate:1pc
